Magnepan

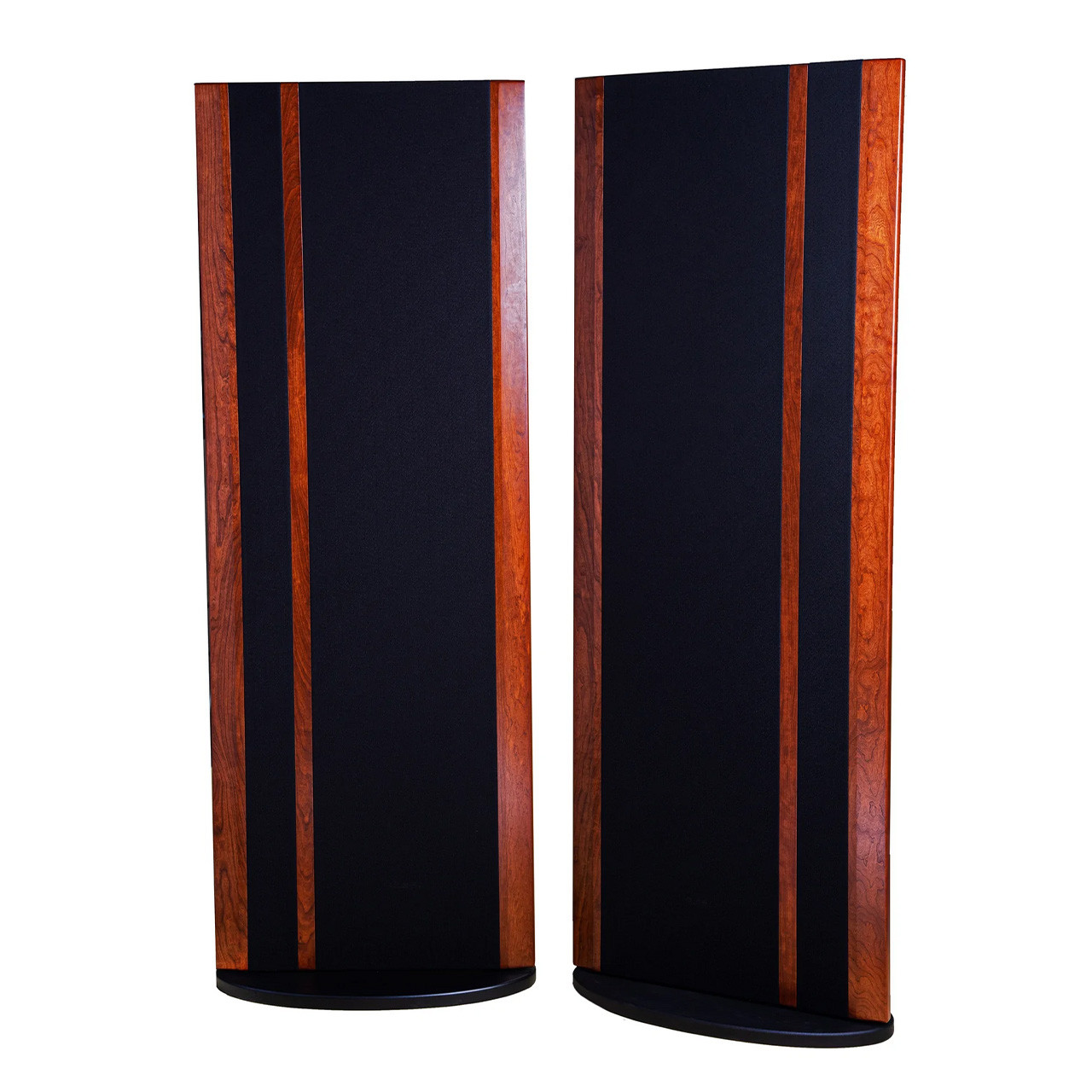

Magnepan 20.7 Planar Magnetic Floorstanding Speakers; Pair

$21,995.00
Earn 21995 Rewards Points for this purchase




Current stock: 0

Magnepan 20.7 Planar Magnetic Speakers

PRODUCT DETAILS

These Maggies' magical ability to transport listeners to a different space and time, and to there realistically recreate (with lifelike scope and size) the sound of acoustic instruments and the venue they were recorded in is extraordinary.  It almost goes without saying (since these are Magnepans), but the 20.7s are also incredibly good values, although you're going to have to bring a lot of power to this party, and you're going to need a good deal of room to house two speakers the size and width of a couple of NFL linebackers.  Don Saltzman- the absolute sound, 249

Reviews

Trim Options

Now available with the X Upgrade!

The general idea of the ‘X’ program is to take the existing design of a given speaker, and simply, almost one-for-one, replace all of the components leading up to the driver, with superior ones. This yields a noticeable, graphable, and awing improvement. There are certain model-specific features, but the MG___X Upgrade Program is at its core characterized by the following factors:

  • Better Capacitors - All capacitors that aren’t already, are replaced with high quality, copper-rich, polypropylene capacitors [banks]. Each capacitor [and bank] used is individually tested to the hundredth such that left and right crossovers’ capacitances are within five thousandths. With the increased level of testing and decrease in tolerance, minor value tweaks are employed in some models resulting in fewer capacitors used and a smoother response overall.
  • Better Coils (Inductors) - All coils that aren’t already, are replaced with high-gauge, copper wire, air-core, bobbin wound coils [arrays]. Each coil [array] used is individually tested to the tenth such that left and right crossovers’ inductances are within five hundredths
  • Better Wiring - All wiring (aside from the green (+) and yellow (-) wires for True Ribbon Tweeters) is replaced with 15ga or higher solid copper wire. Excess wire (for ease of assembly, for instance) is completely removed. C
  • Better Connections - All connections within the circuit, from the solder lug attached to the terminal screw on the nameplate, to the crossover board, to the driver terminal block, and back are soldered connections. Besides the terminal screw,
    solder lug, and jam nut connection on the nameplate, there are no mechanical connections used
  • Better Inputs - All nameplate components are gold rather than nickel

If you have any questions about the X Upgrade, our Hi-Fi Guides are here to help!

Specifications

 20.7 Specifications
Description 3-Way /True Ribbon Tweeter - Quasi-Ribbon Midrange and Bass
Freq. Resp. 25-40 kHz
Rec Power Read Frequently Asked Questions
Sensitivity 86dB/500Hz /2.83v
Impedance 4 Ohm
Dimensions 29 x 79x 2.062
