Key Features:
- Remote control
- Toroidal power transformer
- Blue Velvet ALPS potentiometer
- No feedback design
- SRSG® implementation
- Fine symmetry® implementation
- 1-minute warm up time
- 5mm Aluminum face panel
- Five Year Guarantee
Product Description:

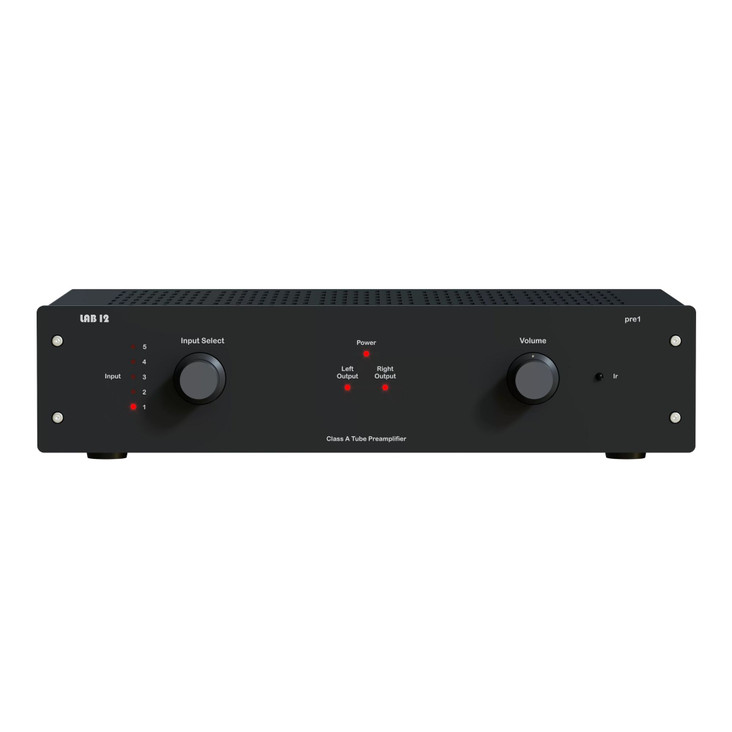

True sonic excellence is achieved when musical vibrancy harmonizes with audio energy, a realm where a pure Class A tube preamplifier thrives. The Lab12 pre1 stands as the cornerstone of high-end audio systems, meticulously crafted to complement both solid-state and tube power amplifiers. From inception to execution, no compromises were made in its design. Despite its accessible price point, the pre1 effortlessly channels musical purity into any amplifier, offering an organic, transparent, and deeply engaging sonic performance.
Driven by a pure tube core, pre1 unleashes the essence of music through matched 6922 tubes and a specialized gain circuit. Lab12’s four-stage regulated solid-state power supply ensures unparalleled filtering and reserves immense power for dynamic musical shifts, fostering a profound connection with the performance.
As a true dual-mono preamplifier, pre1 integrates Lab12’s proprietary Fine Symmetry® and SRSG® topology at every stage. Painstakingly selected audiophile components and extensive listening sessions unveil its rich, dynamic, and transparent sound—surpassing expectations at this price point.
Preserving music's purity while imparting minimal character, pre1 captivates even the most discerning audiophiles. It's a preamplifier crafted to resonate with music enthusiasts, offered with Lab12’s signature glass blasting anodizing finish choices.
Specifications:
Power
|
115VAC 60Hz
|
Power Consumption
|
80 VA max
|
Frequency response
|
5Hz to 200 kHz, +0-3dB
|
Distortion
|
0.04% at 2V RMS output
|
Gain
|
21dB
|
Signal to Noise ratio
|
90dB
|
Maximum output
|
14V RMS
|
Input impedance
|
50K ohm
|
Output impedance
|
900 ohm
|
Tube complement
|
2x 6922 dual triodes
|
Inputs
|
5x line stereo (RCA connectors)
|
Preamp outputs
|
2x line stereo (1x RCA connectors, 1x XLR connectors)
|
Available Colors
|
Matt Black, Frozen Silver
|
Dimensions and Weight:
Overall - 43 x 11 x 29 cm
Product Weight - 7 Kg
Warranty Information:
Warranty - 5 Years
