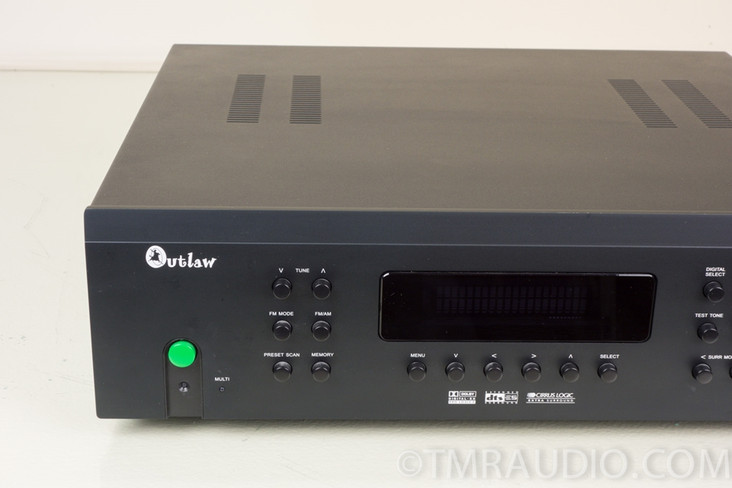

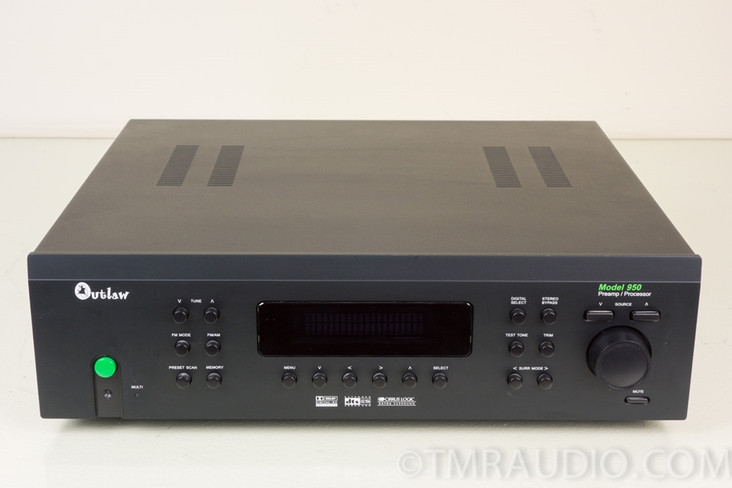

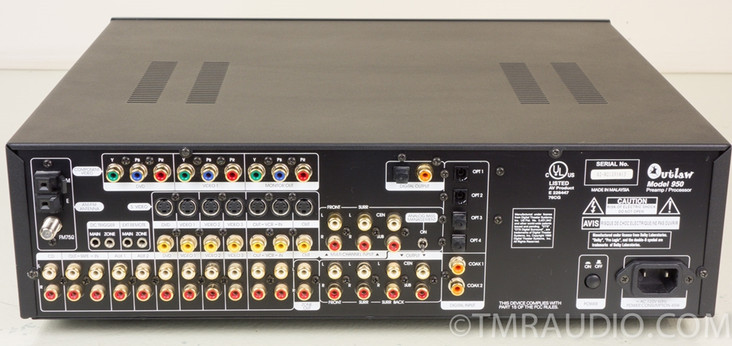

Outlaw Model 950 7.1 Home Theater Preamp / Processor in Factory Box

This unit is in working condition with one exception - volume control issue. During testing, I was impressed with the sound quality from such an inexpensive unit, but I guess that is what Outlaw is famous for. The only functional issue I could find is that the volume control on the preamp does not always respond as it should... you can turn it and the volume doesn't increase or it might even decrease a little bit. This is probably just a dirty contact inside. It does work fine by remote control. However, the original remote is not included with this unit... any good universal remote will operate it.

See photos for details.

Specifications

Audio Section
Analog

• Frequency response: 10 Hz - 90 kHz: +0, -3 dB (Bypass Mode)
• Signal to Noise Ratio: 102 dB (Bypass Mode)
• Distortion: 0.0038% (20 Hz ~ 20 kHz) (Bypass Mode)
• Input sensitivity / input impedance: 200 mV/ 47kohms
• Rated output: 1V(0dB gain in Bypass Mode)

Digital

• Signal to Noise Ratio: 102 dB
• Total Harmonic Distortion: <0.005% (1 kHz, at 0 dB)
• Dynamic Range: 100 dB
• D/A Output: Rated output 2 V (At 0 dB playback)
• Digital Input: S/P-DIF Format
• DSP Processor: Cirrus® CS 49326
• ADC: Cirrus CS 5360
• DAC: Cirrus CS 4396

Video Section
Composite

• Video Format: NTSC
• Input/Output Level: 1 volt P-P
• Input/Output Impedance: 75W
• Frequency Response: 5 Hz - 10 MHz -- +0, -3 dB
S-Video
• Signal Format: NTSC Y/C
• Luminance (Y) Input/Output Level: 1 volt P-P
• Chrominance © Input/Output Level: 0.3 volt P-P
• Input/Output Impedance: 75W
• Frequency Response: 5 Hz - 10 MHz -- +0, -3 dB

Component Video

• Signal Format: NTSC Y/Pr/Pb
• Analog Components
• Luminance (Y) Input/Output Level: 1 volt P-P
• Pr Input/Output Level: 0.7 volt P-P
• Pb Input/Output Level: 0.7 volt P-P
• Input/Output Impedance: 75W
• Frequency Response: DC - 45 MHz -- +0, -3 dB

Tuner Section
FM

• FM Tuning Range: 87.5 MHz - 108 MHz

AM

• Usable Sensitivity: Stereo: 1.8µV
• 50 dB Quieting Sensitivity: MONO 2.5µV STEREO 23 µV
• Signal to Noise Ratio (IHF-A): MONO 79 dB STEREO: 74dB
• Total Harmonic Distortion: MONO 0.2% STEREO: 50 dB
• AM Tuning Range: 520 kHz - 1710 kHz
• Usable Sensitivity: 25µV

General

• Power supply: AC 120 V, 60 Hz
• Power consumption: 45W
• Dimensions (including feet and connectors): 17.12 (W) x 4.6 (H) x 14.76 (D) inches, 435 (W) x 117 (H) x 375 (D) mm
• Weight: 17.6 Lbs/8 kg
• Trigger Outputs (x2): 12 VDC, 100 mA maximum
