Weiss DAC204 MK2 D/A Converter

Weiss DAC204 MK2 D/A Converter Product Description:

Use the DAC204-MK2 for easy switching between multiple digital sources — including a computer or mobile with USB out — and enjoy pristine, low-jitter conversion to analogue audio from the unit’s outputs. The MK2 version features a newly upgraded DAC board with an ES9028PRO chip and a near-zero-ohm output stage, further enhancing performance with difficult cables or low-impedance headphones. The unit can also convert DSD audio to PCM and offers a digital output in AES/EBU format.

COVER ALL YOUR BASES

The DAC204-MK2 is a multi-format digital-to-analogue and digital-to-digital converter. Its many input and output options make it equally useful for use in a professional mixing or mastering studio as for an audiophile-grade listening room.

It now employs a redesigned DAC section: a new ES9028PRO chip featuring an advanced jitter-elimination circuit, plus an optimized output stage. The distortion figures and reconstruction filters have been fine-tuned by ear for an optimal sonic experience.

DIGITAL ACCEPTED HERE

The DAC204-MK2 accepts incoming digital audio streams straight from any USB-equipped computer, tablet, or mobile phone. It can also receive S/PDIF and AES/EBU audio via its S/PDIF or Toslink connectors.

OUTgoing AUDIO

The DAC204-MK2 converts the incoming digital streams to analogue audio, which simultaneously appears on its balanced XLR connectors and unbalanced RCA connectors.

It can also perform digital-to-digital conversion and output digital audio in AES/EBU or S/PDIF formats through the corresponding connectors and a BNC output connector.

Should the incoming audio be in DSD format, the DAC204-MK2 can convert that to PCM.

STAY CONNECTED

The DAC204-MK2 can be permanently connected to multiple digital units, and the user can easily switch between them with the front-mounted Input Selector switch.

Specifications:

The DAC204 has a total of three digital stereo inputs:

• USB
• Two AES/EBU or S/PDIF on Toslink or RCA connectors.

Accepted formats: PCM 44.1kHz up to 384 kHz, DSD 64x / 128x.

Analog Outputs:

• Line out unbalanced on RCA connector.
• Line out balanced on XLR connector.

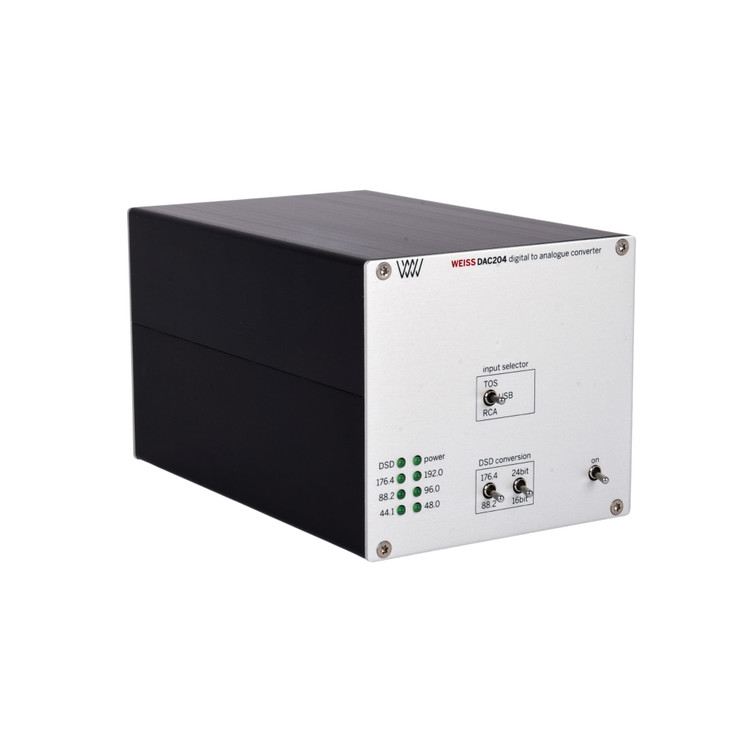

Front Panel Controls:

• An Input Selector switch, to select the active input (USB, Toslink, or RCA).
• Two switches for DSD to PCM conversion settings.
• Power on/off switch.

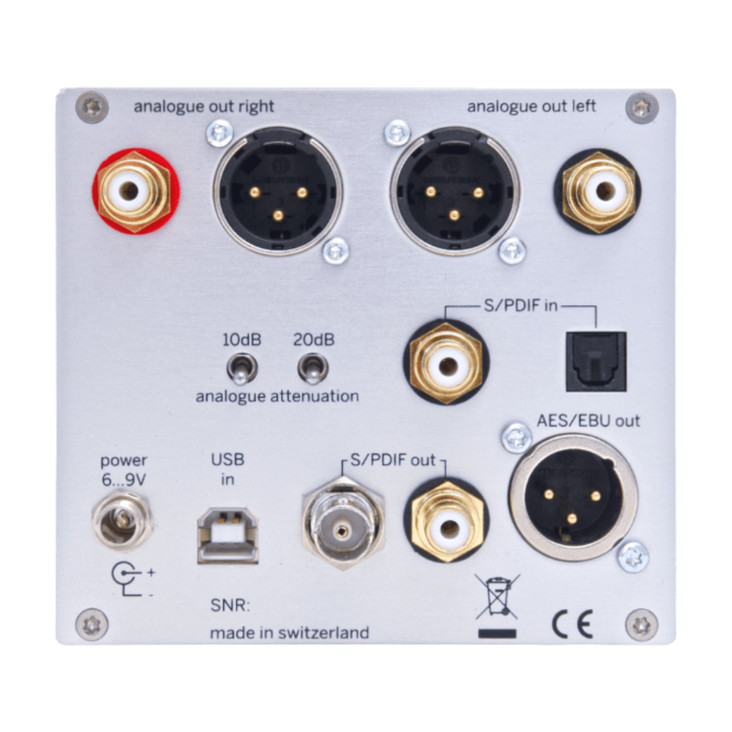

Back Panel Elements:

• Digital inputs on USB, RCA, and Toslink connectors.
• Analog outputs on XLR and RCA connectors.
• Digital outputs (AES/EBU) on stereo XLR, RCA, and BNC connectors.
• Two toggle switches for output level setting.
• External power supply connector.

Dimensions:

• Depth: 16.5 cm / 6.5 inches
• Width: 10.5 cm / 4.2 inches
• Height: 9.5 cm / 3.8 inches

Power Supply: An external power supply is included with the unit. All sensitive voltages have their own linear regulators. The result is an analog output free of “digital noise” and channel crosstalk.
