Rotel C8+ 8-Channel Custom Installation Amplifier Key Features:
-
8 channels delivering 150W per channel into 8 ohms (300W bridged into 4 ohms) – Offers robust power for high-performance multi-room or multi-zone audio setups.
- Class AB amplification technology – Balances high efficiency with warm, natural sound quality ideal for custom installations.
-
Oversized in-house toroidal transformer with thirty-two output devices – Provides exceptional power delivery and tight, controlled bass with minimal distortion.
-
Four analog and four digital inputs matrixed across all zones – Ensures maximum source flexibility and easy distribution of diverse audio signals.
-
Front panel display with intuitive controls for source selection and independent volume, bass, and treble adjustments per zone – Enables personalized audio tuning directly from the amplifier for each listening area.
-
Custom 2U rack-mount chassis requiring no top or bottom clearance – Simplifies installation in professional rack environments with limited space.
-
Control system integration via IP, RS232, and 12V trigger inputs – Facilitates seamless automation and compatibility with home control systems.
Product Description:
The Rotel C8+ Class AB Custom Installation Amplifier combines high performance with exceptional efficiency, delivering 8 channels of premium audio at 150 watts per channel, or 300 watts into 4-ohm loads when bridged.
Equipped for versatile integration, the C8+ features four analog and four digital inputs, all matrixed across every zone. A front panel display and intuitive controls allow for source selection and independent adjustment of volume, bass, and treble per zone.
Designed for streamlined installation, its custom 2U chassis requires no top or bottom clearance when rack mounted, making it an ideal choice for professional audio setups.
Engineered with care.
Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology.

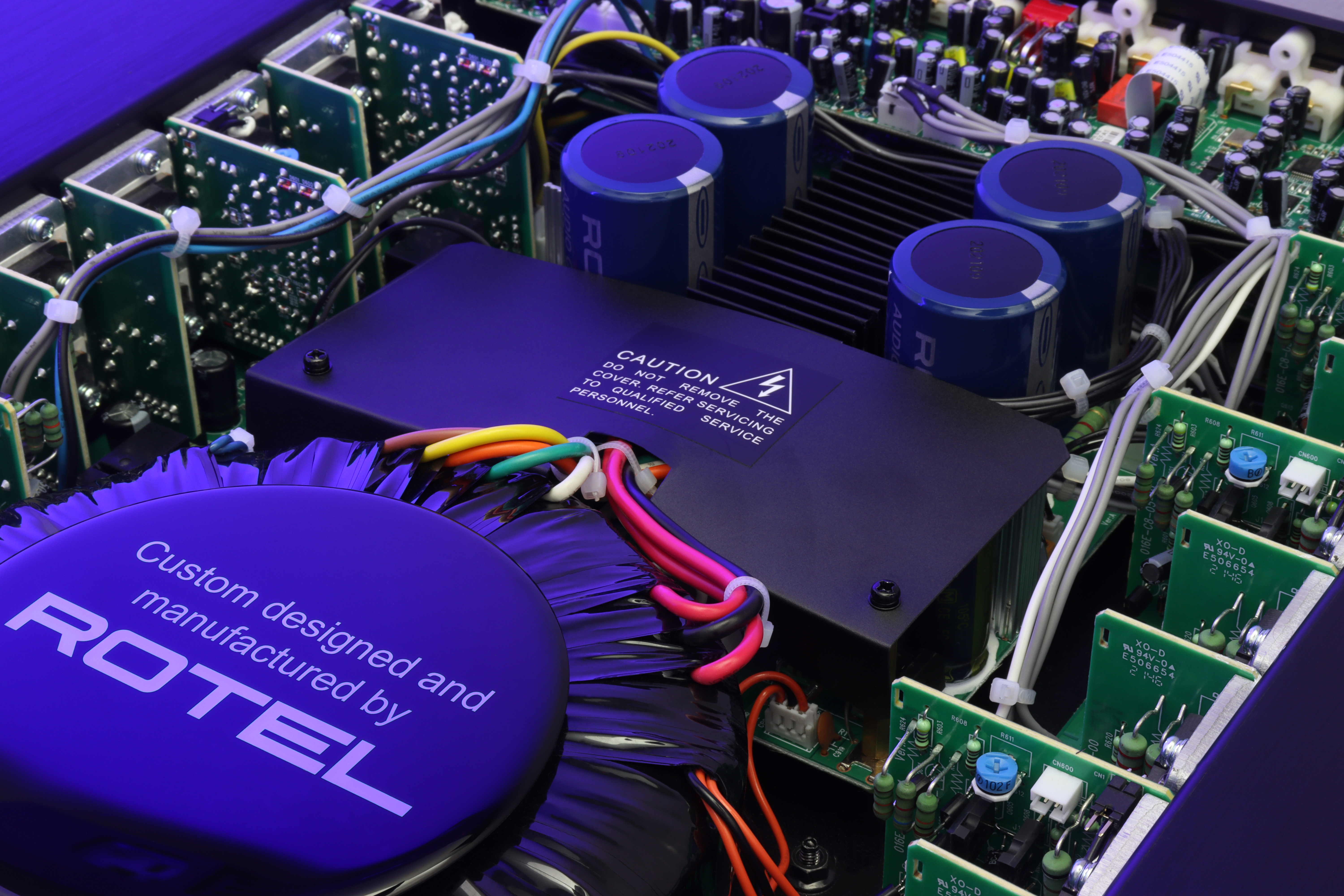

The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy.
For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings.
Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.
The custom 2U height requires no top or bottom clearance when rack mounting.
The C8+ is available in black only.
Specifications:
|
Front Panel Height
|
2U / 88.1 mm (3.5")
|
|
Power Requirements
|
120V, 60Hz
|
|
Power Consumption
|
980W
|
|
Standby Power Consumption
|
Normal: <0.5W
Network Standby: <2W
|
|
BTU Rating (4Ω, 1/8th power)
|
2744 BTU/h
|
|
Maximum Power Output
|
150W/Ch (8 channels driven, 4Ω)
|
|
Continuous Power Output
|
100W/Ch (8 channels driven, 8Ω)
|
|
Total Harmonic Distortion (THD)
|
<0.1%
|
|
Frequency Response
|
Line Level Inputs: 10Hz - 100kHz, ±0.5dB
Digital Inputs: 10Hz - 20kHz, ±0.5dB
|
|
S/N Ratio (IHF "A" Weighted)
|
Line Level Inputs: 100dB
Digital Inputs: 102dB
|
Dimensions and Weight:
Overall -
|
Dimensions (W × H × D)
|
430 × 97 × 414 mm
|
|
Dimensions (W × H × D)
|
17" × 3.9" × 16.3"
|
Product Weight - 18.35 kg (40.79 lbs.)
