MoFi Electronics

MoFi Electronics UltraPhono Pro Phonostage

$2,495.00
Earn 2495 Rewards Points for this purchase
Free shipping to contiguous US
Tax calculated at checkout
Sale Alert






Current stock: 0

Shipping soon. Pre-order now!

MoFi Electronics UltraPhono Pro Phonostage Key Features:

  • Single-input implementation of MasterPhono’s core architecture
  • Fully discrete J-FET & MOSFET input/output stages
  • Passive RIAA equalization with zero feedback
  • Seven-stage regulated balanced power supply
  • Front-panel gain and loading controls
  • Ultra-low-noise design with carefully selected components
  • Precision RIAA accuracy (±0.05 dB)
  • Brushed-aluminum panels with rigid steel frame

Product Description:

Created in collaboration with renowned audio engineer Peter Madnick, UltraPhono Pro distills the core architecture of our flagship MasterPhono into a streamlined, single-input, all-analog phono stage. The mission is the same: preserve the sonic integrity MoFi’s mastering engineers capture in the studio by extracting maximum information from your cartridge with as little loss as possible—delivering a natural, unforced presentation without unnecessary complexity.

DIAL IN YOUR CARTRIDGE, STAY IN THE MUSIC

Setup is fast and repeatable with gain and loading controls right on the front panel. Choose the setting that fits your cartridge, then use practical listening tools—mono, subsonic, mute, and dim—to tailor playback for real records in real rooms, without breaking the flow of a listening session.

ENGINEERED FOR LOW-NOISE TRUTH

UltraPhono Pro is built around a fully discrete J-FET and MOSFET gain stage and a passive, zero-feedback RIAA network—choices made to preserve natural transients and tonal realism without editorializing the source. A seven-stage regulated power supply provides an exceptionally quiet foundation, letting dynamics and low-level detail come through with ease.

ZERO-FEEDBACK PASSIVE RIAA

A passive RIAA equalization network with zero feedback preserves natural transients and tonal realism. Precision film-foil parts maintain equalization accuracy within ±0.05 dB.


FRONT-PANEL CARTRIDGE MATCHING

Gain and loading are right on the front panel for fast, repeatable setup. Dial in a cartridge in seconds, then lock it in with confidence.

Specifications:

Input RCA jack, voltage mode, single-ended
Gain RCA output: 40dB, 52dB, 65dB; Balanced output: 46dB, 58dB, 71dB
THD 10mV @1kHz, 40dB gain: 0.005% A-Weighted; 10mV @1kHz, 65dB gain: 0.005% A-Weighted; 1mV @1kHz, 40dB gain: 0.010% A-Weighted; 1mV @1kHz, 65dB gain: 0.013% A-Weighted

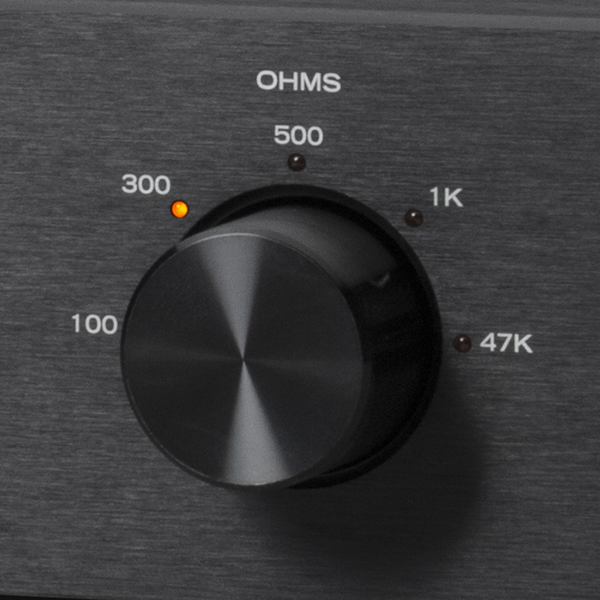

Loading 100 Ohms, 300 Ohms, 500 Ohms, 1k Ohms, 47k Ohms
Output Impedance Balanced: 230 Ohms; Unbalanced: 115 Ohms
Max Output Maximum output @1% THD: 10 Volts RMS
RIAA Accuracy ±0.05dB
Frequency Response 10Hz–50kHz ±0.20dB
S/N Ratio (20Hz–20kHz) A-Weighted; Balanced 40dB gain: 82dB, 93dB; Balanced 65dB gain: 78dB, 85dB; RCA 40dB gain: 75dB, 83dB; RCA 65dB gain: 69dB, 75dB
Dimensions 17” x 2.5” x 11.35”
Weight 7 lbs
