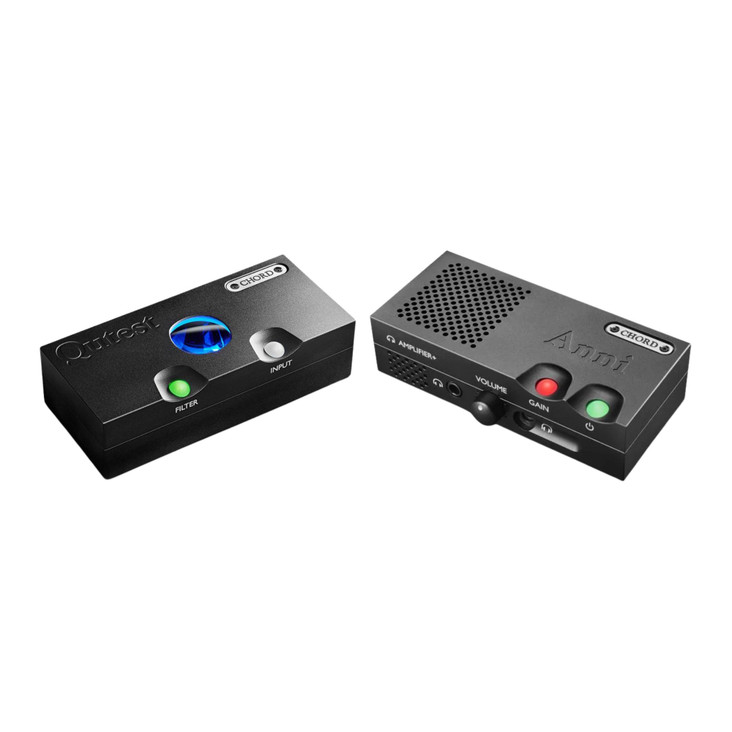

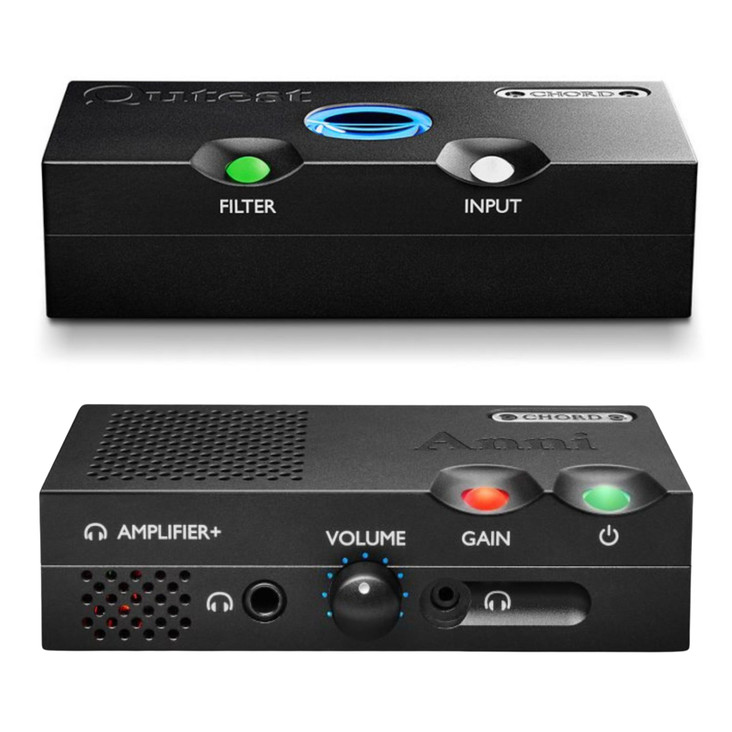

For a limited time, save big on a new Chord Electronics setup when you bundle the Qutest DAC and Anni Integrated Amplifier. The Anni is a perfect match for the award winning Qutest DAC - just add speakers and a source for a killer desktop setup. Inventory is limited, take advantage of this TMR exclusive offer today!
Key Features:
Qutest DAC
- Chord Custom FPGA DAC
- USB Galvanic Isolation
- 4x Selectable Filters
- Selectable Output Voltage
- Supports up to 768kHz PCM, Native DSD 512 (8x) Capable
- Roon Tested
Anni Integrated Amplifier
- Next-generation Dual Feed Forward amp topology
- Powerful headphone amp with 3.5 mm and 6.35 mm outputs
- 4 mm (banana) loudspeaker outputs
- Gain control
- Two line inputs
Product Description:

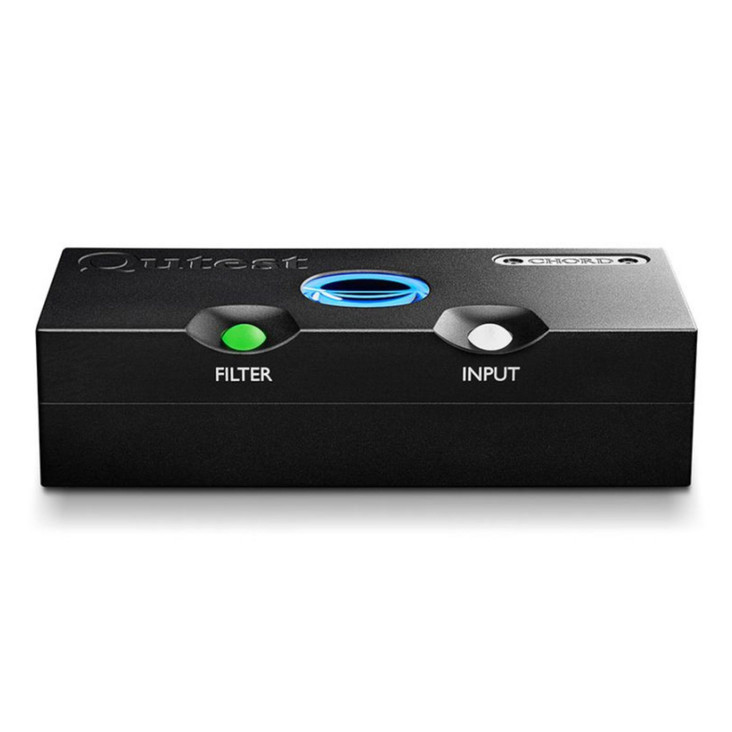

Qutest DAC
Qutest is a standalone DAC whose performance belies its compact dimensions. With DAC architecture based on the award-winning Hugo 2, Qutest offers class-leading digital conversion.
Qutest is Chord's ‘pure’ DAC (it does not contain headphone amplification or rechargeable batteries like some of its range stablemates) and is designed to improve sound quality in the home. It is the latest evolution of our most affordable standalone DAC, the multi-award-winning 2Qute, which it directly replaces.
Qutest, which is a What Hi-Fi? Star of CES 2018, is based on our award-winning proprietary FPGA technology developed for the class-leading Hugo 2 DAC/headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits of Chord’s digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernize aging digital source components.
The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminum billet. The Qutest PCB nestles within a shallow cavity in the solid aluminum chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.
Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.
A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.

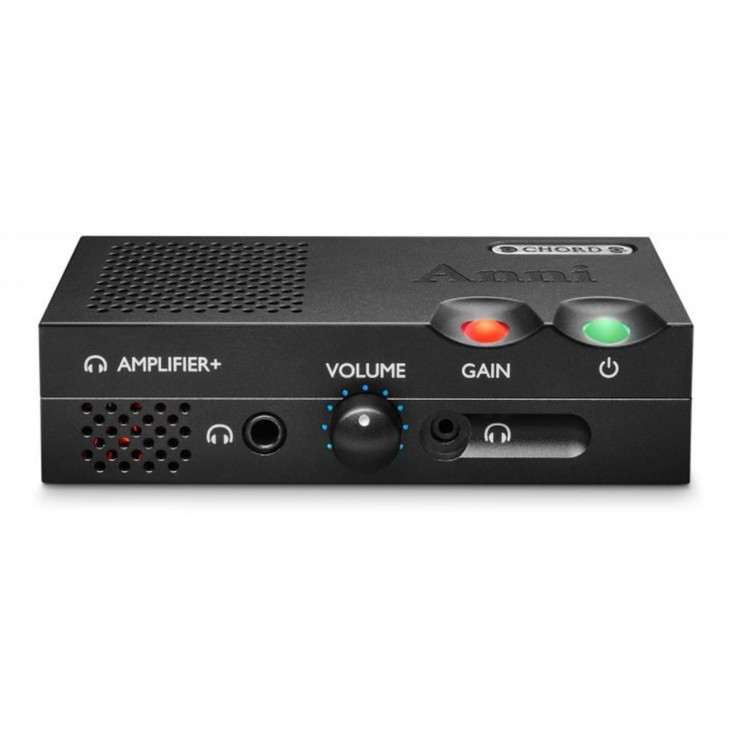

Anni Integrated Amplifier
Anni is a desktop integrated amplifier that introduces next-generation ULTIMA technology to both headphones and compact loudspeakers.
Anni is Chord's first-ever desktop integrated amplifier. Capable of driving both headphones and compact loudspeakers, Anni benefits from the company’s proprietary ULTIMA circuit topology and is perfectly positioned to exploit the full potential of today’s high-performance headphones, desktop monitors and high-resolution audio sources.
The new Anni desktop integrated amplifier forms part of the Qutest range and seamlessly complements the resolving abilities of the multi-award-winning Qutest standalone DAC and Huei phono stage. As a system, the Qutest components provide an unrivaled desktop audio solution, offering class-leading digital and analogue technologies for the modern music lover. The company’s compact QSS (Qutest Stand System) modular equipment rack provides the perfect support, too.
Anni offers the recently announced dual-feed-forward error-correction circuit topology whether using headphones or compact loudspeakers. Anni’s advanced technology allows it to drive any headphone load, error-monitored and compensated amplification at all times.

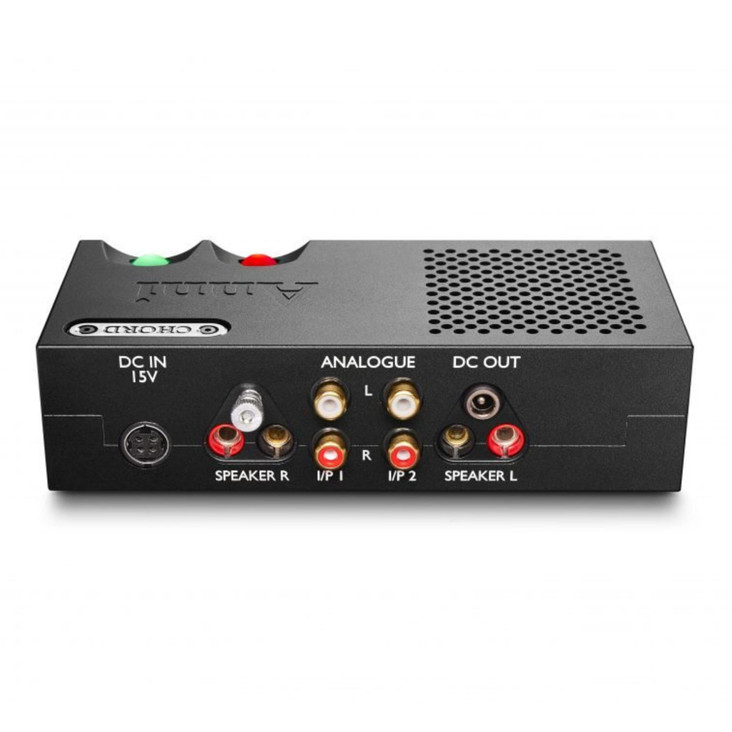

Benefitting from both 3.5 mm headphone outputs and ¼-inch (6.35 mm) outputs, so two can listen simultaneously, plus 4 mm banana-type loudspeaker outputs, Anni delivers 10 watts of quality ULTIMA amplification, controlled by a fascia-mounted volume control that also doubles as an input selector switch for Anni’s two line-level inputs. A two-stage gain control for loudspeakers provides additional flexibility with a wide range of desktop monitors.
Specifications:
Qutest DAC
Materials
|
Precision machined aluminum casing with polycarbonate buttons and glass viewing portal. Available only in Jett Black.
|
Device Power Supply
|
5v 2amp Micro USB
|
Tap Length Filter
|
49,152 – 10 element Pulse Array design
|

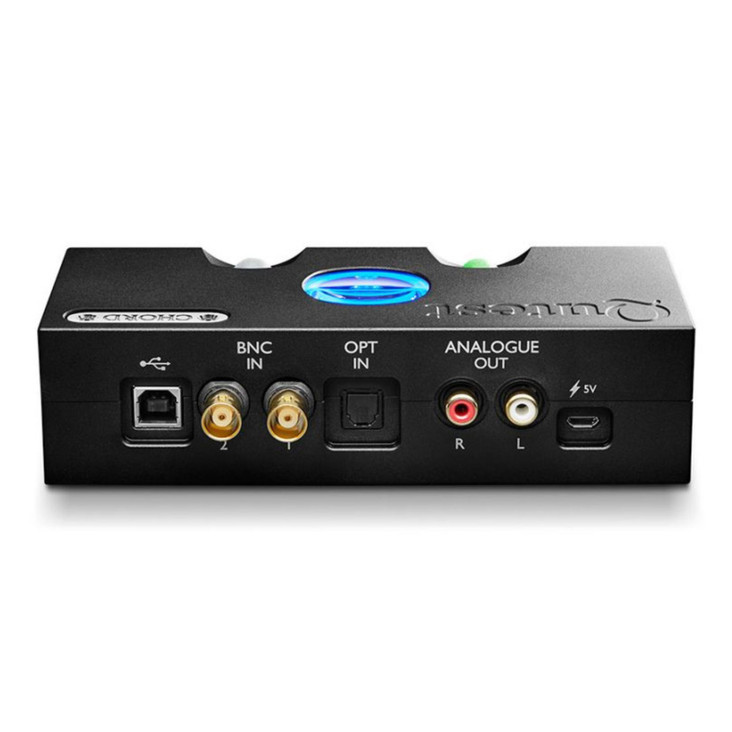

Connectivity (Input)
|
- USB Type B (White): 44.1kHz to 768kHz – 16bit to 32bit
- 2x BNC Coax (Red): 44.1kHz – 384kHz – 16bit to 32bit
- 1x Dual data mode input (using both BNC coax inputs together): 44.1kHz to 768kHz – 16bit to 32bit
- Optical (Green): 44.1kHz to 96kHz – 16bit to 24bit
|
Connectivity (Output)
|
1x stereo pair of RCA (Left and Right)
|
PCM Support
|
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit
|
DSD Support
|
Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)
|
Variable Output
|
Fixed, but selectable between 3v (blue), 2v (green), and 1v (red) via dual press of ‘Filter’ + ‘Input’ upon startup
|
Driver Support
|
Driverless with Mac OS X and Linux, driver required for Windows OS
|
Country of Manufacture
|
England
|
Chipset
|
Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA
|
Tap-length
|
49,152
|
Pulse Array
|
10 element pulse array design
|
Frequency Response
|
20Hz – 20kHz +/- 0.2dB
|
Output Stage
|
Class A
|
THD
|
<0.0001% 1kHz 3v RMS 300Ω
|
THD and Noise at 3v RMS
|
117dB at 1kHz 300ohms ‘A’ weighted (reference 2.5v)
|
Noise 2.6 uV ‘A’ Weighted
|
No measurable noise floor modulation
|
Channel Separation
|
138dB at 1kHz 300Ω
|
Weight
|
770g
|
Dimensions
|
4.5cm (H) 16cm (W) 8.8cm (D)
|
Boxed Weight
|
1500g
|
Anni Integrated Amplifier
Power Output
|
10 W 8 ohms
|
THD
|
0.02%
|
Signal to Noise
|
-92 dB
|
Noise Floor
|
-110 dB
|
Frequency Response
|
5 Hz – 60 kHz (-3 dB)
|
Dimensions
|
160 mm (W) x 42.50 mm (H) x 96.60 mm (D)
|
Weight
|
625 g
|
Warranty Information:
Warranty - 3 Years
