ATC CDA2 Mk2 CD DAC Preamplifier angled view ATC CDA2 Mk2 CD DAC Preamplifier back view ATC CDA2 Mk2 CD DAC Preamplifier front view

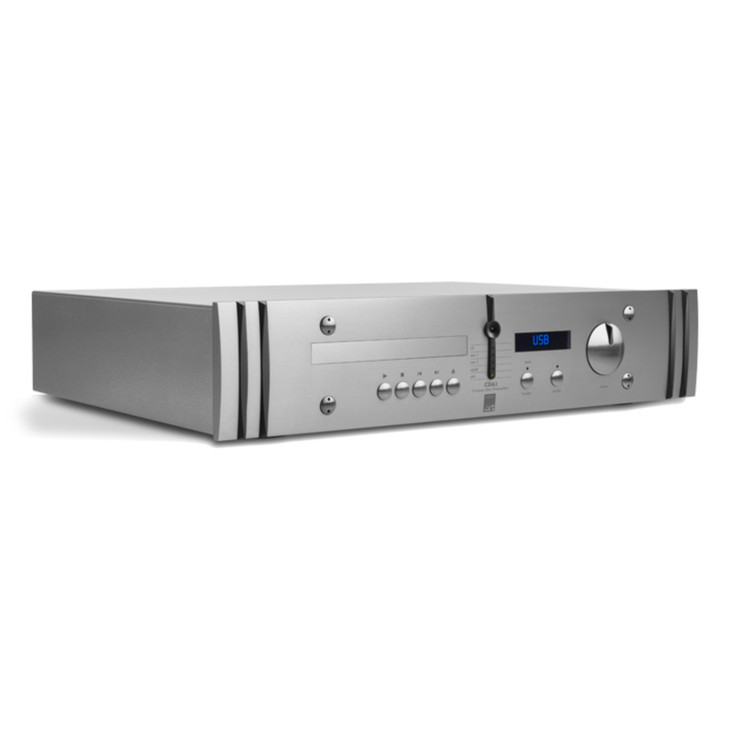

ATC CDA2 Mk2 CD DAC Preamplifier angled view

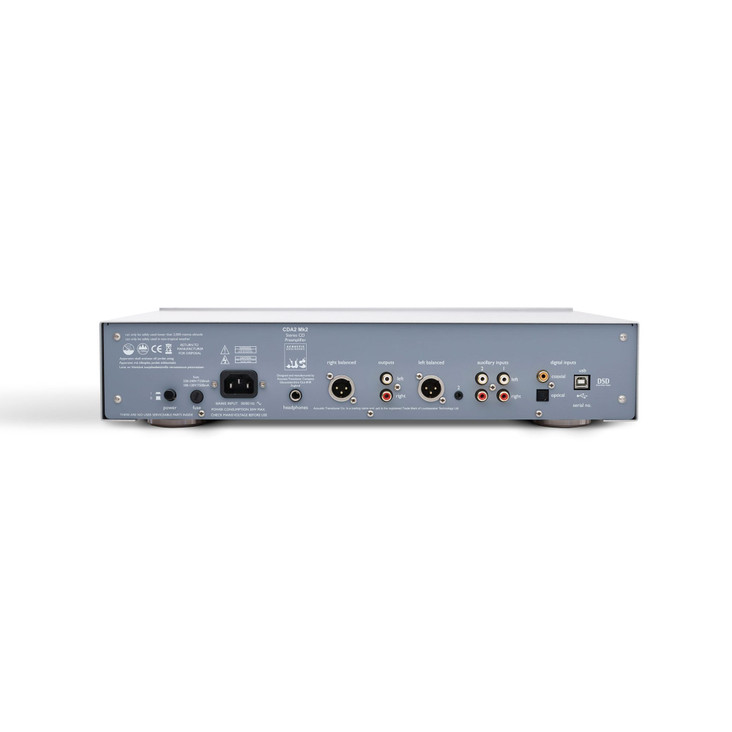

ATC CDA2 Mk2 CD DAC Preamplifier back view

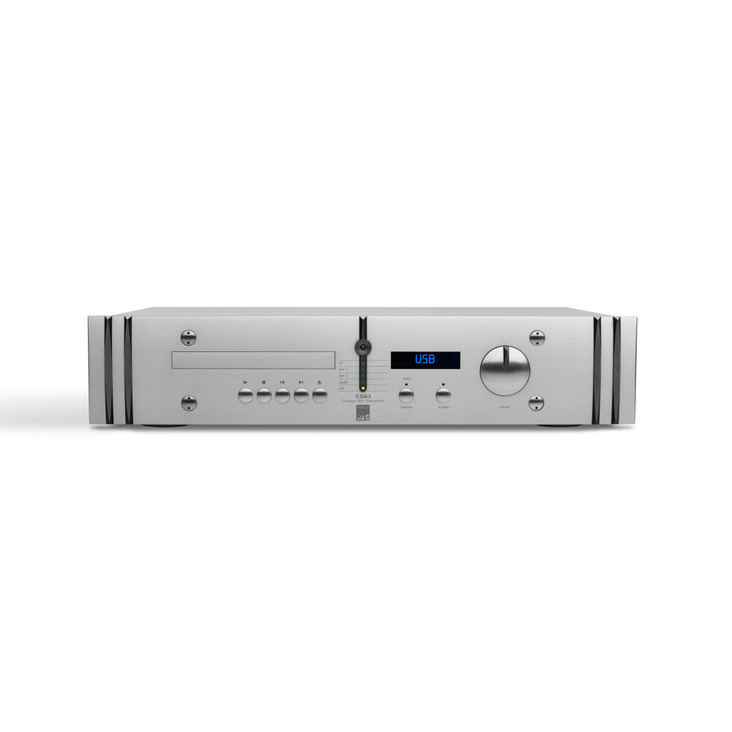

ATC CDA2 Mk2 CD DAC Preamplifier front view
ATC

ATC CDA2 Mk2 CD DAC Preamplifier

$5,499.00
Earn 5499 Rewards Points for this purchase
Free shipping to contiguous US
Tax calculated at checkout
Sale Alert





Current stock: 0

ATC CDA2 Mk2 CD DAC Preamplifier Key Features:

  • All-discrete class-A pre-amplifier with balanced and unbalanced outputs.
  • Two analogue inputs via RCA/phono and one via 3.5mm mini-jack.
  • High performance CD Player.
  • Premium AKM 32-bit DAC.
  • USB digital input supporting up to 384kHz PCM data and native DSD256.*
  • Headphone amp featuring discrete output stage.
  • Roon Tested Certification
  • Handmade in England.
  • 6 year warranty.

Product Description:

Combining very high performance and versatility, the CDA2 combines a CD player, pre-amplifier and high-resolution DAC within a compact and elegant chassis.  Acting as the source or combined with a streamer and/or external phono stage, it can partner with active speakers to form an exceptional system with minimal ‘box-count’.  Alternatively, the CDA2 can combine with a power amplifier such as the ATC P2 to drive passive loudspeakers with stunning results.

Specifications:

CD PLAYER

Specification

 Details
THD <0.0015% / -96dB (1kHz re. 2V out)
Frequency Response ±0.2dB (20Hz–20kHz)

PRE-AMPLIFIER

Specification

 Details
Frequency Response <2Hz – >280kHz (-3dB)
Distortion <0.0008% / 102dB (1kHz)
S+N/N Ratio >112dB (IEC ‘A’)
Crosstalk < -80dB (20Hz–20kHz)
Input Sensitivity Aux: 600mV; 3.5mm: 400mV (re. 2V out)
Max Output (Balanced XLR) 18.4V r.m.s. (600Ω)
Max Output (Unbalanced) 9.2V r.m.s. (600Ω)
Pre-Outs 1 x XLR (balanced); 1 x RCA/Phono (unbalanced)
Headphone Output 1 x 6.35mm jack
Analogue Inputs 2 x RCA/Phono; 1 x 3.5mm

DAC

Specification

 Details
Digital Inputs 1 x TOSLINK; 1 x Coaxial; 1 x USB
Distortion <0.001% (all supported sample rates)
TOSLINK Up to 24/96 PCM
Coaxial Up to 24/192 PCM
USB Up to 32/384 PCM; DSD256 (Windows/Linux); DSD128 (Mac)
Dimensions 94 x 449 x 327mm / 3.7 x 17.7 x 12.9in (H x W x D incl. connectors)
Weight 6.35kg / 13.97lbs
