VIABLUE

VIABLUE EP-7 Ethernet Cable

$244.80
Earn 245 Rewards Points for this purchase
Free shipping to contiguous US
Tax calculated at checkout
Length *
Sale Alert






Current stock: 0

VIABLUE EP-7 Ethernet Cable Product Description:

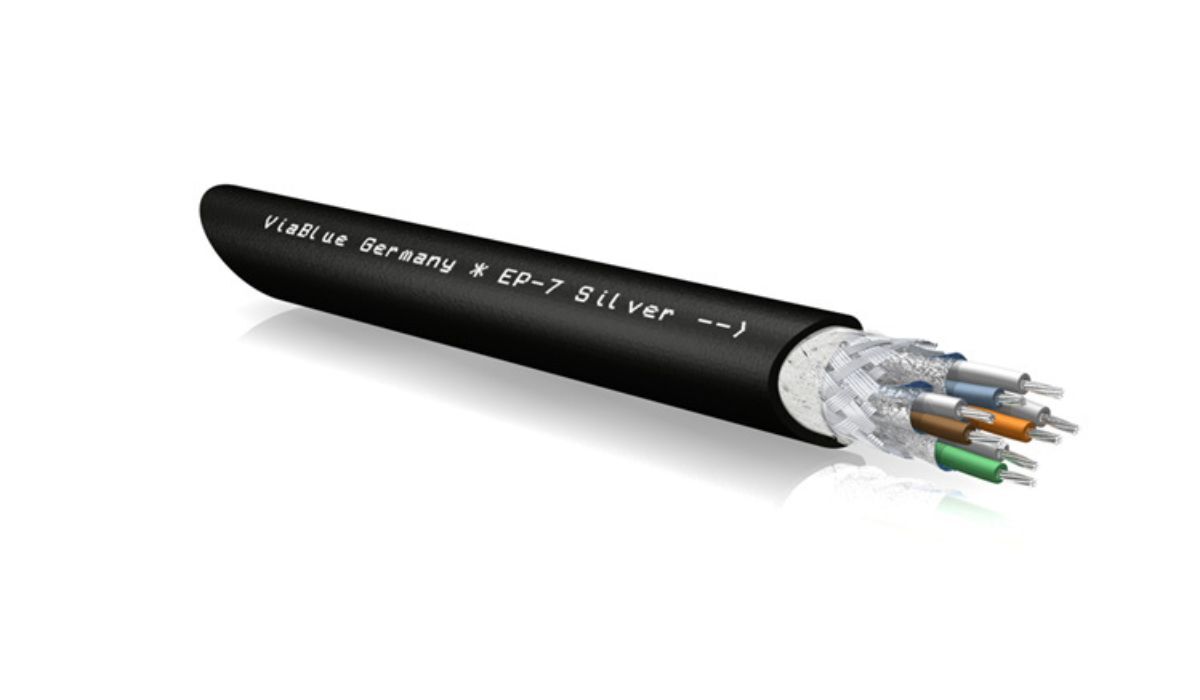

VIABLUE™ EP-7 Silver RJ-45 CAT6A network cables guarantee full protection of sensitive data of external confounding effects and distortion. They provide an optimal gigabit high speed networking, leading to an extremely efficient and complete streaming of HD audio and UHD video formats.VIABLUE EP-7 Ethernet Cable expanded view, internal makeup of the cabling

For professional patch-cable applications

  • 8 conductors of tinned pure OFC copper strands
  • Soft banding
  • Satin matt sheath: highly flexible and ultra resistant

100% shield coverage by a total of 5 layers

  • Silver-plated OFC braided shield
  • 4 aluminum foil shields
  • To prevent any distortion such as mobile phone signals
  • Jitter-free, no matter which frequency

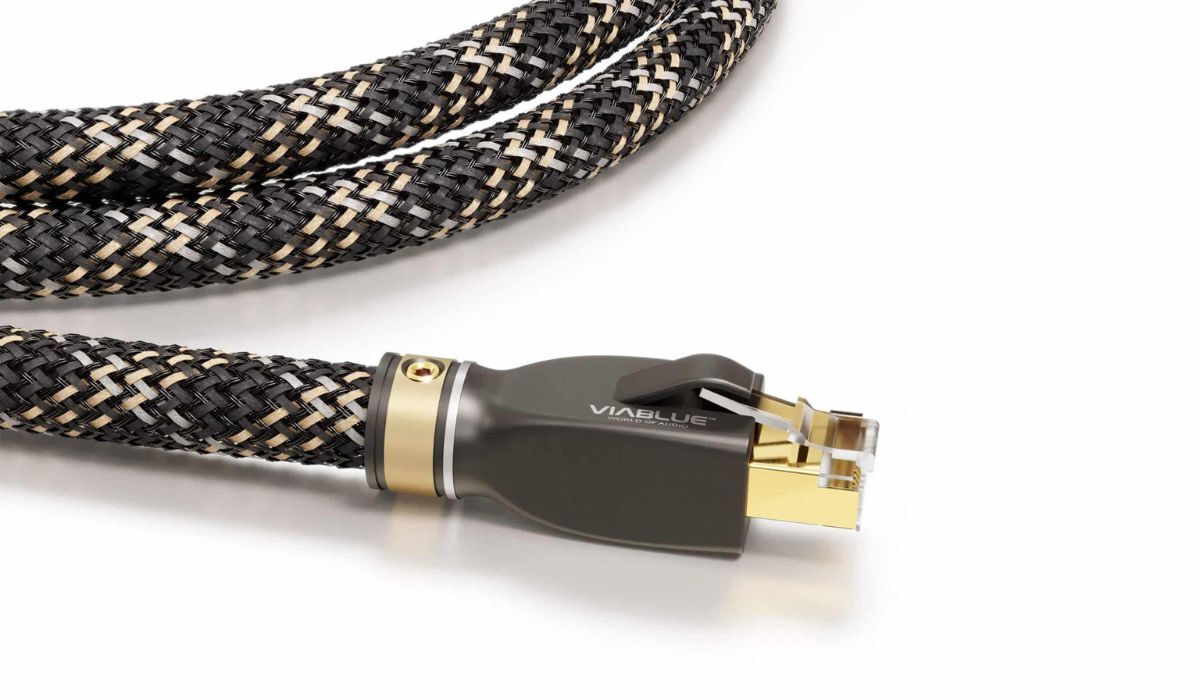

VIABLUE EP-7 Ethernet Cable, T8 RJ-45 connector detail view

Customized with VIABLUE™ T6s RJ-45 connectors

  • Compact, flame-retardant, break-proof
  • Unique VIABLUE™ Ultragrip surface
  • 24 carat real gold-plated contacts

OFC Copper

OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.

Handmade in Germany

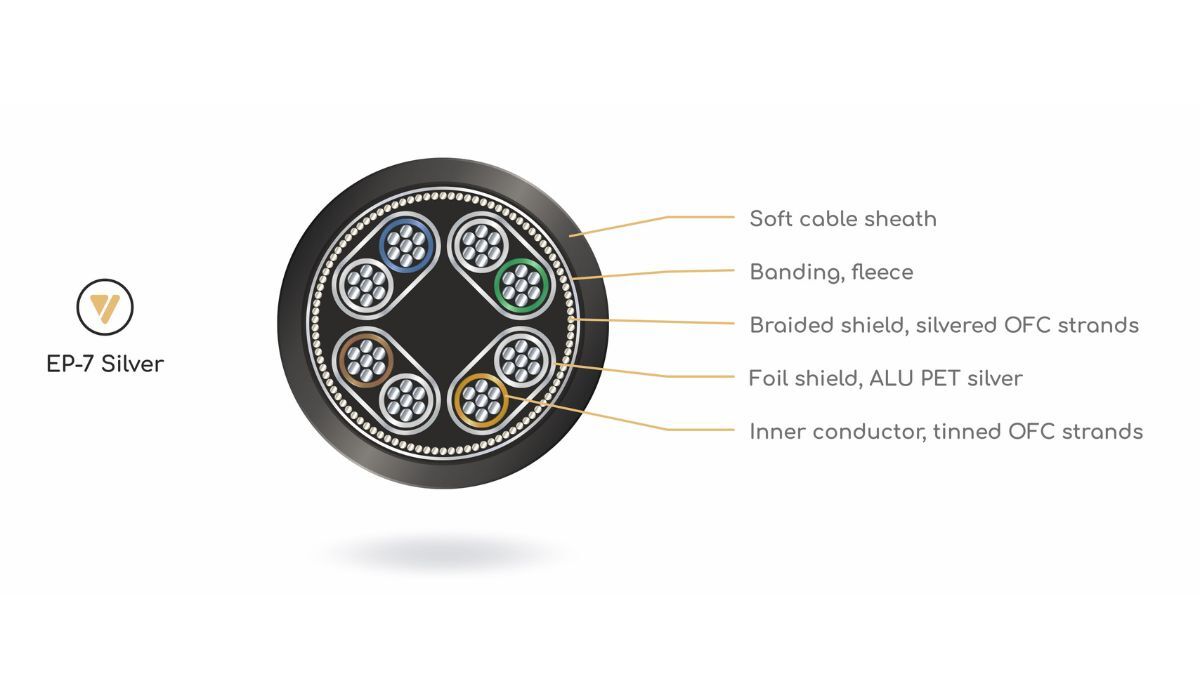

VIABLUE™ Cables are produced and assembled manually in Germany. That way, we guarantee a high quality and first-class listening experience.VIABLUE EP-7 Ethernet Cable, cable cross section diagram showing internal layout and geometry

Specifications:

Cross Section

AWG 26/7

Bending Radius

5 cm

Inner Cores

OFC tinned

Braided Shield

OFC silver-plated

Operating Capacity (Nominal)

45 nF/km

Relative Propagation Velocity

Approx. 0.76 C

Characteristic Impedance (1-100 MHz)

100 ± 15 Ohms

Characteristic Impedance (100-250 MHz)

100 ± 22 Ohms

Characteristic Impedance (250-600 MHz)

100 ± 25 Ohms

Shield Attenuation (up to 600 MHz)

> 60 dB

Cable Type

CAT7-Kabel

Connectors

RJ-45 CAT6A

Outer Diameter (incl. sleeving)

10.5 mm
