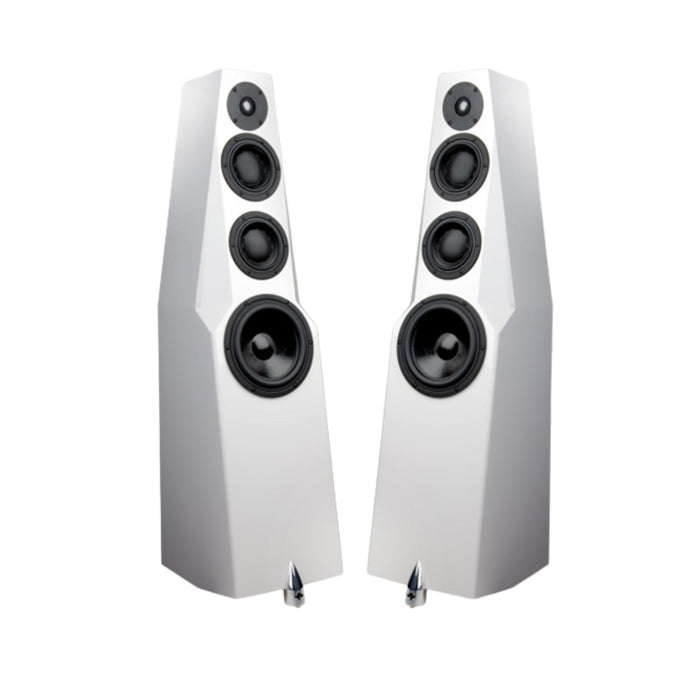

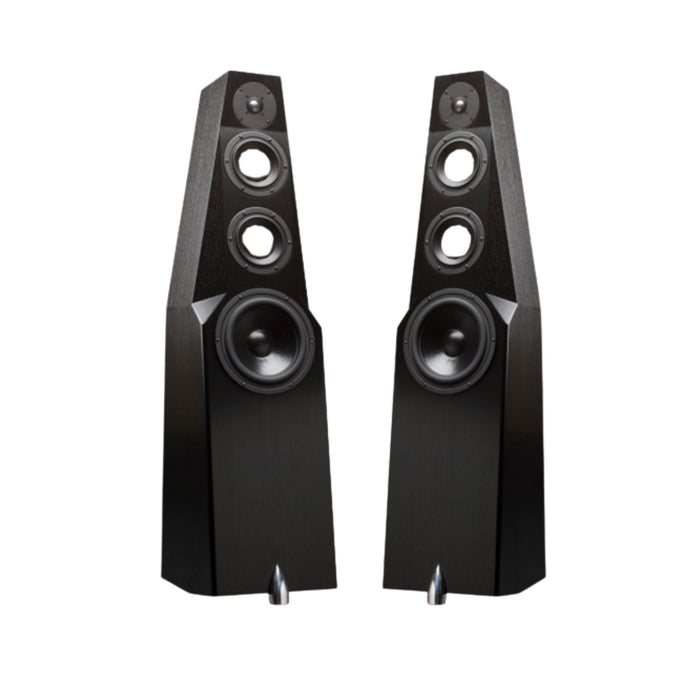

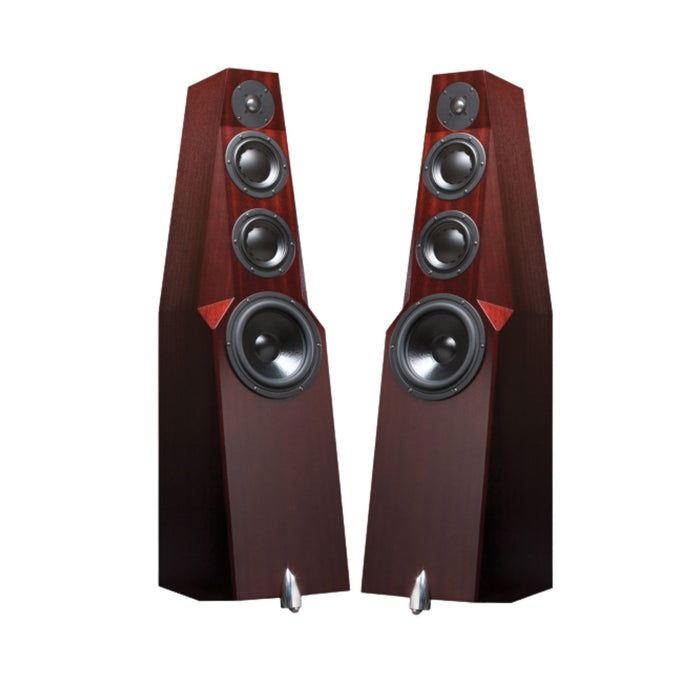

Totem Acoustic Wind Floorstanding Speakers; Pair

Totem Acoustic Wind Floorstanding Speakers

A Powerful presence

Since its inception, the Wind has been appreciated for its avant-garde design and superior sonic architecture. Its complex cabinet geometry has masterfully made this dynamic, multi-driver speaker sound “Totem Great”.

A totally unique (4x) driver 3-way speaker system, the Wind stands for flexibility and truly full-range expressiveness. The multiple midranges allow for an incredible amount of musically informative material to transpire in space with ease. The sound level possibilities of this large dynamic system also facilitate large and complex musical demonstrations. Design and performance are brought forth in a flexible and manageable equilibrium. Also available in Design finish.

Design Highlights

Avant-garde design
Superior sonic architecture
Complex cabinet geometry
Absolute surreal holographic imaging
Available in exotic veneer finishes
Technical Features
Totally unique (4x) driver 3-way speaker system
On- and off-axis point source imaging
Specially damped, long-throw woofer
Special low resonance tweeter with chamber
Multiple midranges
Extreme-quality hard-wired crossover

Specifications

Frequency Response: 24 Hz – 21 kHz ± 3 dB (in room)
Recommended Power: 80 – 250 W
Woofer: 8.5″ / 21.59 cm cast frame, specially damped.
Midrange 2×5.5″ with 3″ / 7.62 cm voice coil. Cast frame. High power handling, wrap around neo magnet structure, accurate linear throw
Tweeter: 1″ / 2.54 cm alloy dome flexible linear suspension, low resonance, chamber
Impedance: 4 ohms
Sensitivity: 87 dB
Dimensions (w x h x d): 10.7″ x 44.3″ x 14″ / 27.18 x 112.522 x 35.56 cm (over max. size)
Placement from rear wall: 3′ – 7′ / 91.44 – 213.36 cm
Placement distance apart: 6′ – 14′ / 182.88 – 426.72 cm
Break-in Time: 200 – 250 hours
Crossover Frequency: Woofer to mids, 2nd order / 2nd order, mids to tweets 2nd order 2nd order
Speaker Terminals: Bi-wireable, Gold WBT connectors
Weight 74.8lb / 34kg

Customized Drivers

Bespoke Acoustic Engineering
Every single driver is completely unique to Totem and proprietary in design, engineered by Totem and then manufactured to the strictest standards to meet our parameters by the finest raw driver suppliers in the world. In some cases, where the technology is beyond the capabilities of suppliers or is wished to kept secret, Totem can and will build our own drivers. Every driver exhibits phase linearity, speed, emotion, off axis natural presentation, and spatial articulation.

Handmade Crossovers

With Point-to-Point Connections
Totem crossovers don’t require many parts because of the synergy between our customized drivers, but the components are the world’s best. Our crossovers aren’t built on PCB’s because the laminated conductive tracks are weak and inconsistent. Instead they are secured to a thin piece of fiberboard or insulated polymers and components are mechanically crimped together because it simply sounds better. When we must solder, we choose WBT Silver Solder, the purest in the industry.

Artisanal Cabinet Construction

Master Craftsman Woodwork
Meticulously hand crafted for peak performance that lasts decades. Lock-Miter assembly is an intricate woodworking procedure where edges physically interlock together. The resulting cabinet is up to 5 times stronger than conventional V Groove cabinets. Internal and external veneering resists warping, structurally fortifies, and ensures consistent peak performance. Industry unique Borosilicate damping manages dissipation, keeps the cabinet musically alive, and never deteriorates. Popular materials like poly fillers eventually decay, dramatically affecting the performance. Variable Density Fiberboard is denser at the extremities than the interior to reduce repetitive nodes and resonances.

Connectors

WBT Bi-Wire / Bi-Amp
Premium WBT connectors are the preferred choice by all audiophiles. WBT connectors lets the signal through without interfering or affecting it. Superior connectors like WBT connectors will prevent any signal loss and get the most out of the entire system.

Sound Isolation

Claw
Machined from solid aluminum, the unique geometric shape breaks up surface standing waves and controls surface resonance as it acoustically decouples the speaker. Can be used with or without ball bearing, depending on surface. It provides improved bass response and imaging.
