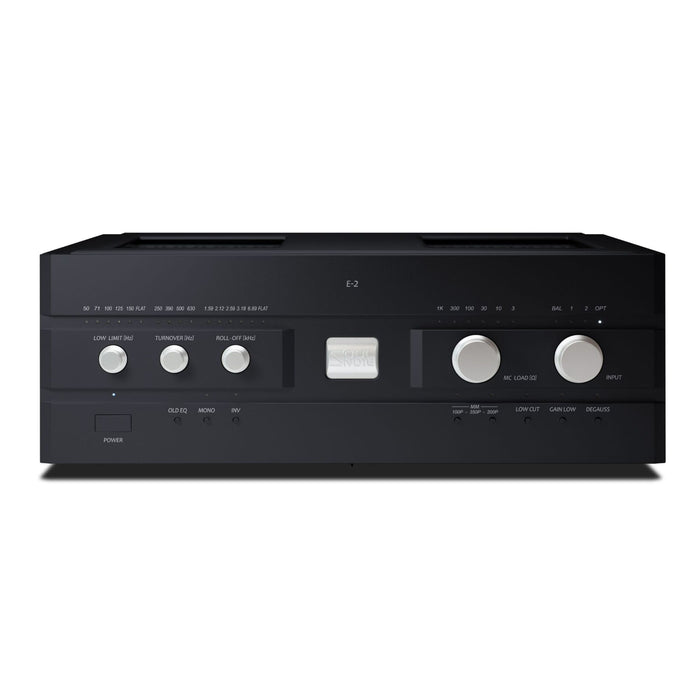

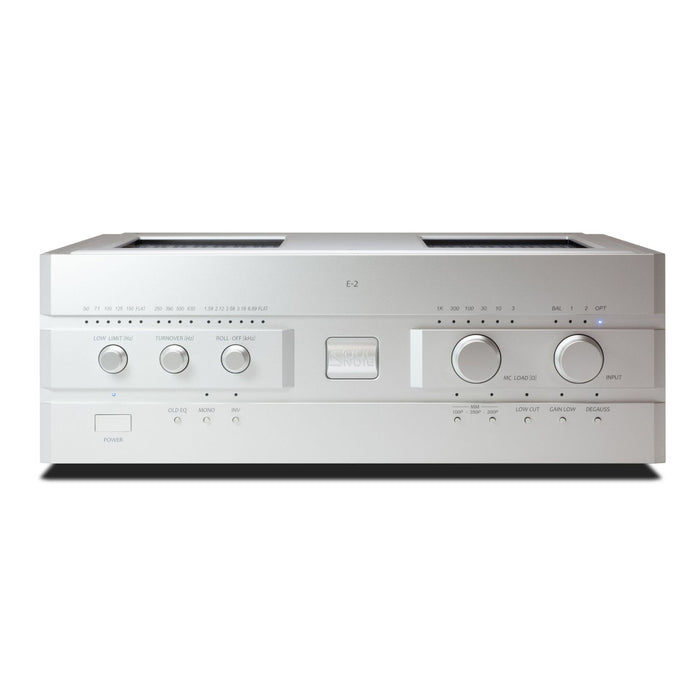

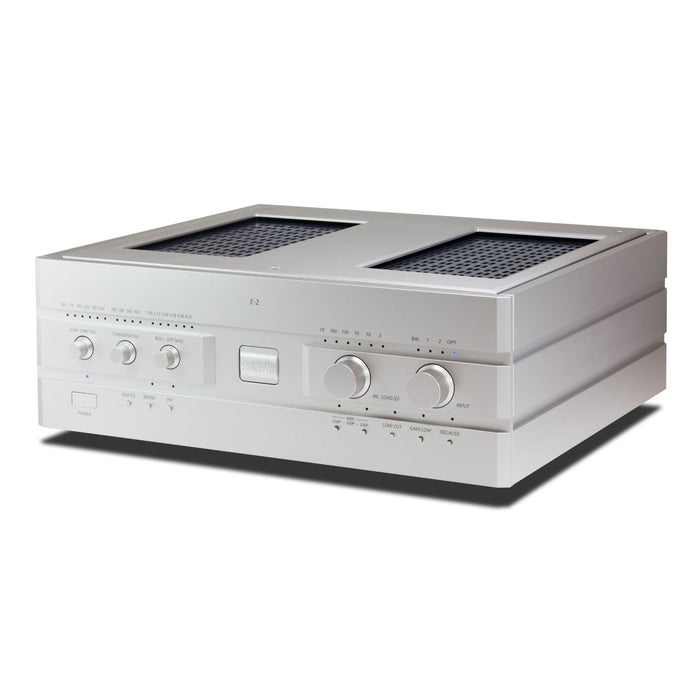

About Soulnote E-2 Ver 2 Phono Equalizer
Soulnote E-2 Ver 2 Phono Equalizer Key Features:

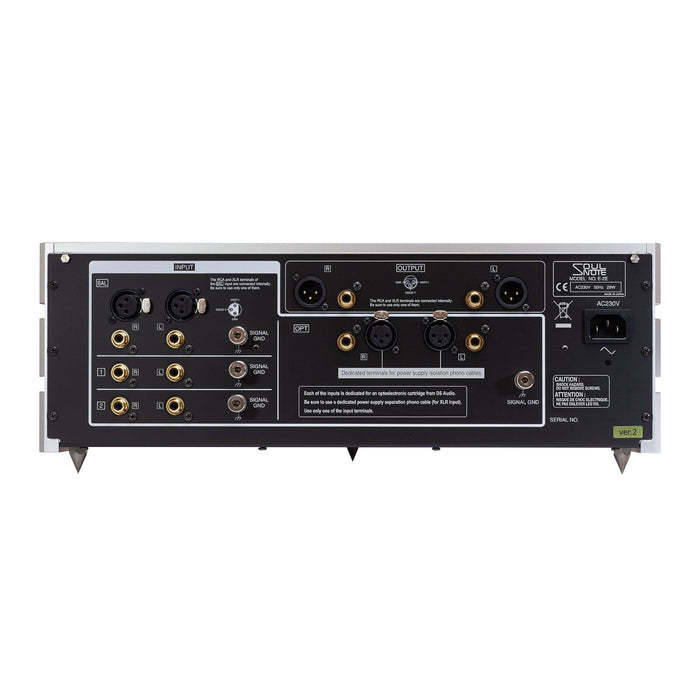

Dedicated Optical Cartridge Input
The E-2 VER2 features the same XLR connector for separated power supply cables as employed in the E-3, maximizing the unique advantages of optical cartridges.
Advanced Analog Circuit for Optical Cartridges
The fully balanced, non-NFB “New Type-R” (*) circuit from the E-3 has been directly implemented, ensuring uncompromising fidelity and musical expression.
Refined MC/MM Circuit
The MC/MM stages have been significantly simplified with a newly designed bias circuit, achieving a notable improvement in sound quality and overall performance.
Enhanced Chassis design
The unfixed top cover, also adopted in the A-2 VER2, has been further refined to contribute to sonic purity and resonance control.
Extended Flexibility
MC loading is now supported up to 1 kΩ, offering greater compatibility with a wide range of cartridges. Furthermore, all of the original’s versatile features, including adjustable EQ curve functionality, have been fully retained.
Specifications:
|
Input Sensitivity |
MC: 0.4 mV, MM: 5 mV, OPT: 70 mV |
|
Gain |
MC: 77 dB, MM: 55 dB, OPT: 32 dB |
|
Rated Output |
BALANCED: 3.0 V, UNBALANCED: 1.5 V |
|
RIAA Deviation |
±0.2 dB |
|
MC Load Resistance |
3 Ω, 10 Ω, 30 Ω, 100 Ω, 300 Ω, 1 kΩ |
|
MM Load Capacitance |
100 P, 200 P, 350 P |
|
MM Load Resistance |
47 kΩ |
|
Equalizer Frequency |
ROLL-OFF [kHz]: 1.59, 2.12 (RIAA), 2.59, 3.18, 6.89, FLATTURNOVER [Hz]: 250, 390, 500 (RIAA), 630LOW LIMIT [Hz]: 50 (RIAA), 71, 100, 125, 150, FLAT |
|
Power Voltage |
115V AC 60Hz |
|
Power Consumption |
29W |
|
Dimensions |
430 (W) × 160 (H) × 410 (D) mm |
|
Weight |
Approximately 20 kg |
|
Included Accessories |
Spikes, Power cord |
