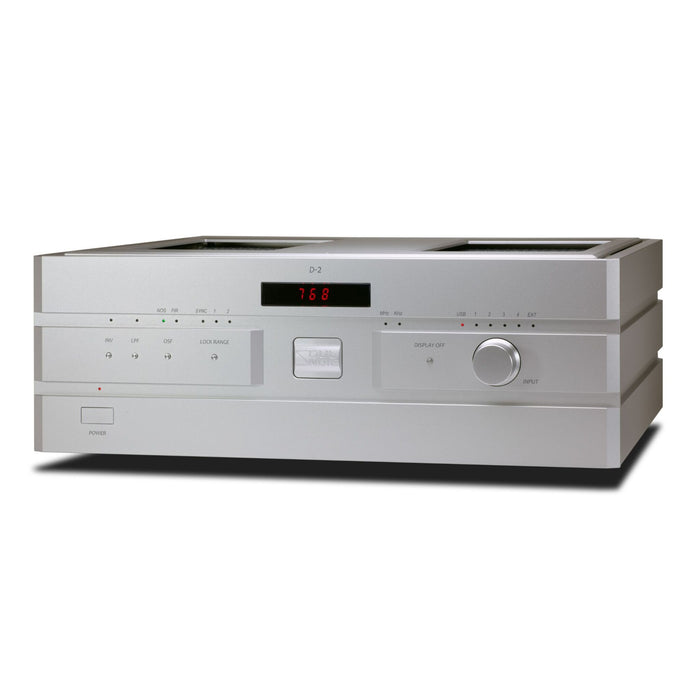

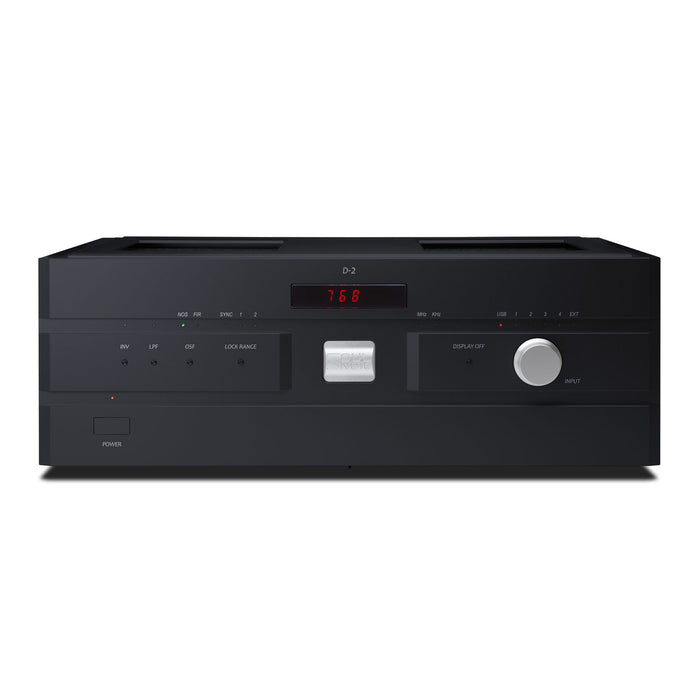

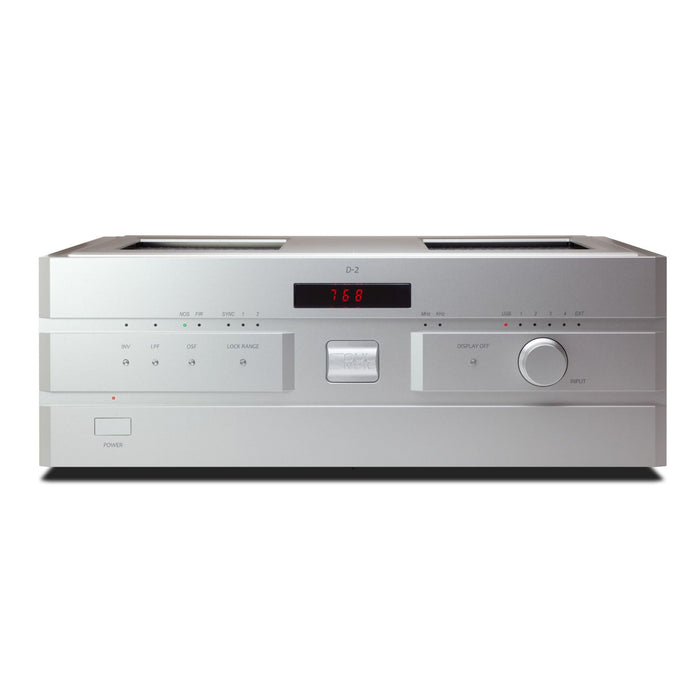

About Soulnote D-2 Ver 2 D/A Converter
Soulnote D-2 Ver 2 D/A Converter Key Features:
Optimized Analog Circuit
For DAC application, the fully balanced, non-NFB “New Type-R” (*) circuit is originally developed for E-3, has been optimized and implemented. This design achieves a level of clarity and dynamic energy approaching that of the 3 Series.
Enhanced External Clock Connectivity
The external clock input now features a newly developed SMA connector with superior high-frequency characteristics and reinforced construction. This eliminates the need for conversion adapters when connecting the X-3 Clock Generator. When paired with the X-3, the D-2 VER2 delivers a remarkable improvement in tonality and refinement across the entire frequency range.
Comprehensive Refinements inspired by the 3 Series
Expertise from the 3 Series has also been applied to the digital circuitry, power supply, and chassis design. The result is a significant enhancement in openness, musical presence, and expressiveness.
Specifications:
|
Input Formats |
USB, Coaxial, AES/EBU |
|
Supported Sampling Frequencies |
USB: Max. 768 kHz (PCM) / Max. 22.6 MHz (DSD)Coaxial・AES/EBU: Max. 192 kHz (PCM) / Max. 2.8 MHz (DSD64 DoP v1.1) |
|
PCM Quantization Bit Rate |
USB: 16-bit, 24-bit, 32-bitCoaxial・AES/EBU: 16-bit, 24-bit |
|
Digital Input |
USB (Type B), Coaxial ×2 (SPDIF), AES/EBU |
|
External Clock Input |
10 MHz (SMA 50 Ω) |
|
Analog Output |
BALANCED ×1, UNBALANCED ×1 |
|
Analog Output Level (BALANCED) |
6.2 Vrms |
|
Analog Output Level (UNBALANCED) |
3.1 Vrms |
|
Frequency Characteristic |
2 Hz to 20 kHz (+0 / -1 dB) |
|
S/N |
110 dB |
|
Total Harmonic Distortion |
0.04% (NOS / 44.1 kHz) |
|
Analog Filter |
1st-dimensional passive |
|
Power Voltage |
115V AC 60Hz |
|
Power Consumption |
32W |
|
Dimensions |
430 (W) × 160 (H) × 405 (D) mm |
|
Weight |
Approximately 17 kg |
|
Included Accessories |
Spikes, power cable |
