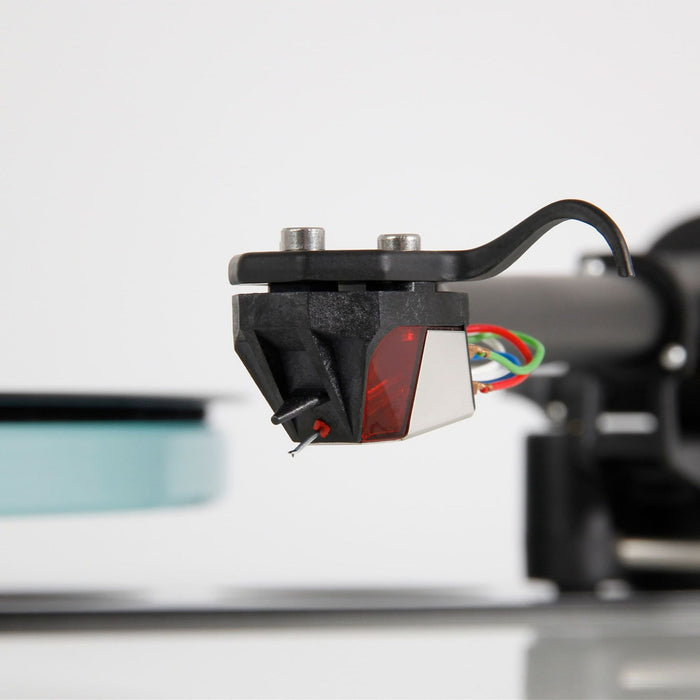

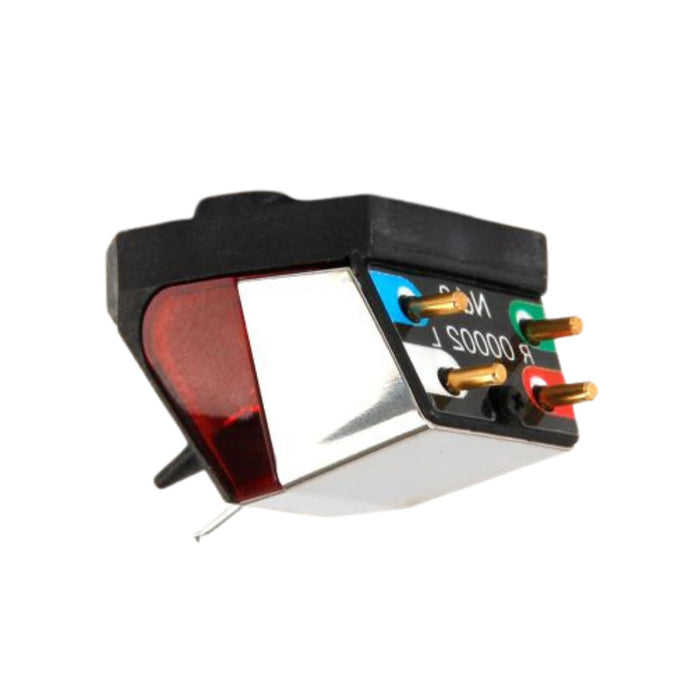

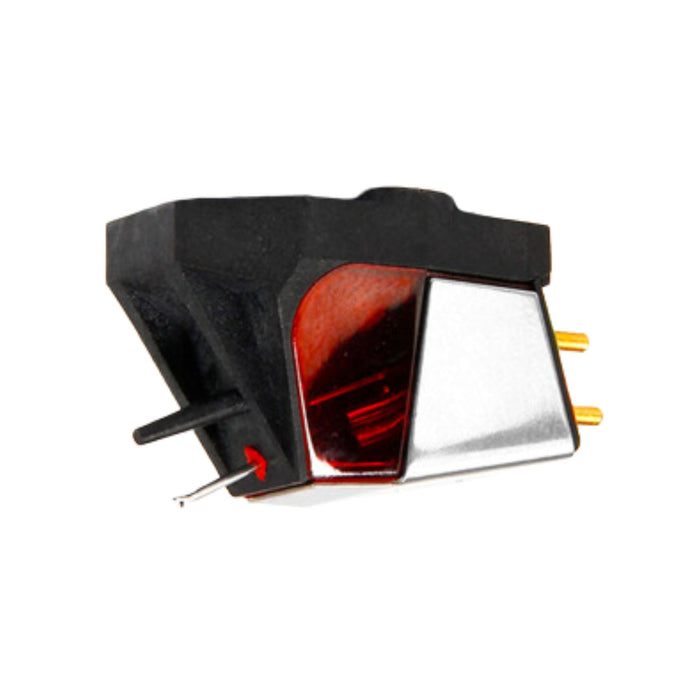

Rega Nd3 Moving Magnet Cartridge

Rega Nd3 Moving Magnet Cartridge Key Features:

• Bonded elliptical profile stylus
• Aluminum cantilever
• Neodymium magnet
• Unique generator
• Rega 3 point mounting system
• Highly rigid lightweight PPS body
• Handmade stereo cartridge
• 100% recyclable packaging
• Lifetime warranty against manufacturer defects

Product Description:

The Nd3 moving magnet cartridge, developed over a span of 10 years, offers a groundbreaking advancement in moving magnet technology. This innovative cartridge is part of the Nd range (patent pending) and is believed to be the first in the world to utilize ultra-high powered Neodymium magnets, resulting in a truly unique design that promises to elevate performance to the next level.

Advanced Technology

Each Nd3 cartridge is carefully handcrafted by highly skilled technicians, ensuring the highest quality in every unit. It features a high-quality elliptical stylus made from manmade polycrystalline diamond, bonded to a round titanium shank. The cartridge's design incorporates brand new generator geometry with perfect symmetry, allowing for precise channel balance. The Nd3 also boasts an optimized pole gap that enhances linearity and reduces crosstalk, delivering a much wider soundstage compared to previous models. This innovative cartridge is equipped with miniaturized parallel coils, wound in-house with 38-micron wire and precisely 1,275 turns, resulting in a low inductance, low impedance generator that significantly improves high-frequency response. Reflecting a commitment to sustainability, the Nd range is packaged in 100% recyclable materials.

Nd Magnet technology

Commonly found in Moving Coil designs, including those within their own range, the Nd3 is believed to be the first moving magnet cartridge to incorporate a Neodymium (Nd) N55 magnet. Known as the world's most powerful commercially available magnet, the Neodymium N55 is a critical component of this innovative design, providing significantly more power than standard bar magnet configurations and enabling the distinct performance characteristics of the Nd3.

Glass filled PPS body

The entire assembly of the Nd3 is encased in a precision-engineered injection-molded body made from glass-filled polyphenylene sulfide (PPS), a material known for its lightweight and high rigidity. The low mass of this body minimizes stress on the tonearm bearings, promoting free movement—an essential factor for accurate vinyl playback. This innovative body design draws inspiration from their highly successful MC range, further enhancing the cartridge's performance.

Cantilever & stylus profile

The Nd3 features an aluminum cantilever equipped with a bonded precision elliptical stylus. This stylus profile offers exceptional tracking accuracy, allowing it to extract a remarkable level of detail from the vinyl surface.

Factory Fitted options

The Nd3 cartridge will be available as a factory-fitted option on the Planar 2 and Planar 3 turntables, providing exceptional performance and value for these models. Customers who opt for the factory-fitted package can enjoy a discounted rate compared to purchasing the cartridge separately. For more details, customers are encouraged to inquire with their Rega dealer.

Rega rebuild scheme

Rega cartridges feature a unique pivot pad design that enhances performance by eliminating the mechanical joint between the stylus housing and the main body. This design significantly improves the tracking ability and stability of the stylus. In the event of damage or wear, customers can return their Rega cartridge to their Rega dealer for a rebuild. The rebuild process includes fitting the cartridge with a new cantilever, stylus, and pivot pad, and each rebuild is fully tested to ensure it meets the same standards as a new cartridge. Rebuilds are offered at a reduced price when trading in a worn or damaged cartridge, providing a cost-effective alternative comparable to replacement styluses offered by other manufacturers.
