About Perlisten D3is In-Wall / On-Wall Subwoofer
Perlisten D3is Subwoofer Product Description:

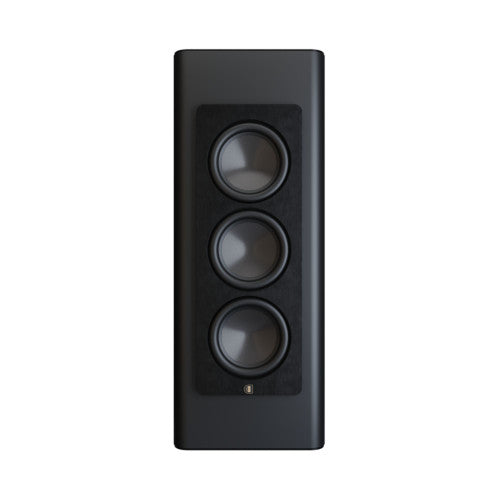

The D3is is a beautiful subwoofer made from extruded aluminum, which houses three 203mm (8″) woofers with glass fiber cones. The D3 comes with brackets to mount it on a wall or within a structure. The D3 also comes with an external DSP-controlled 1,500-watt amplifier and rack ears if you desire to mount it into a standard 403mm (19″) equipment rack. Don’t be fooled by its diminutive size. This is a highly capable and aesthetically pleasing subwoofer.
It's all in the details

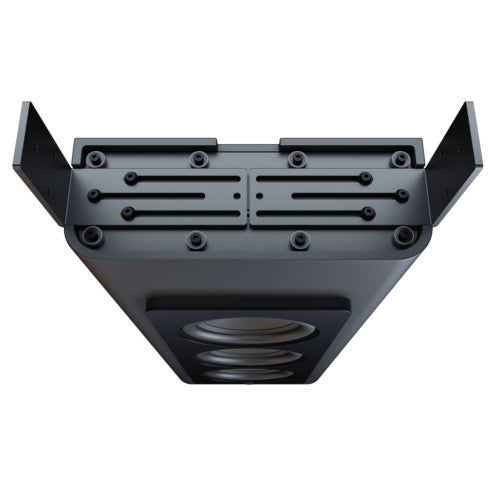

D3is – Designed for applications where space is a premium. The D3is works equally well mounted in-wall or on-wall. Proprietary isolation mounts and brackets are designed into the enclosure to reduce overall vibration and noise from transmitting to the adjacent wall. The sub was designed using proprietary nonlinear modeling techniques that allow us to simulate and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our 1500W amplifier now in its own chasis, utilizing a larger 2.8” LCD touchscreen display. Rack mounting hardware is included. Common to all Perlisten subs, all functions and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy.
Specifications:
| Alignment | Acoustic suspension |
| Amplifier | 1500 W RMS |
| Display Interface | 2.8" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double-precision floating-point math |
| DSP Engine | TI DSP with 48-bit data paths |
| Driver Complement | (3) × 215 mm (8.5") carbon fiber diaphragm |
| Linear Excursion | ±16.9 mm |
| Reference Sensitivity | 89.5 dB / 150 mV / 1.0 m |
| Frequency Response – THX EQ | 20–290 Hz (-6 dB) / 16–350 Hz (-10 dB) |
| Frequency Response – Boost (Large Room) EQ | 17–290 Hz (-6 dB) / 15–350 Hz (-10 dB) |
| Frequency Response – Cut (Small Room) EQ | 31–290 Hz (-6 dB) / 23–350 Hz (-10 dB) |
| Inputs | (1) Balanced XLR |
| (1) Unbalanced RCA | |
| Outputs | (1) Balanced XLR (unbuffered) |
| (1) Unbalanced RCA (unbuffered) | |
| (1) Digital AES/2 | |
| Parametric EQ | 10-band PEQ with 3 user presets |
| Low-Pass Filter | Bypass, 30–160 Hz; slopes: 6, 12, 18, 24 dB/oct |
| Phase | Variable 0–270° |
| Polarity | Normal / Inverted |
| Configurable Auto Turn-On & 12 V Trigger | XLR, RCA |
| Subwoofer Dimensions (H × W × D) | 920.8 × 355.6 × 146.1 mm (without brackets) |
| 36.3 × 14.0 × 5.8 in | |
| Amplifier Dimensions (H × W × D) | 89.0 × 429.2 × 322.4 mm |
| 3.5 × 16.9 × 12.7 in | |
| Weight – Net (Subwoofer) | 39.7 kg (87.3 lbs) |
| Weight – Net (Amplifier) | 6.1 kg (13.4 lbs) |
| Weight – Gross (Packaged) | 53.4 kg (117.5 lbs) |
| Available Finishes | Matte black |
