About Musical Fidelity Nu-Vista Uni PSU
Musical Fidelity Nu-Vista Uni PSU Key Features:
- Powers Nu-Vista DAC, Vinyl 2 and soon to be announced new CD player
- Provides clean independant voltage for all devices
- Better noise performance by moving the AC mains out of the main unit

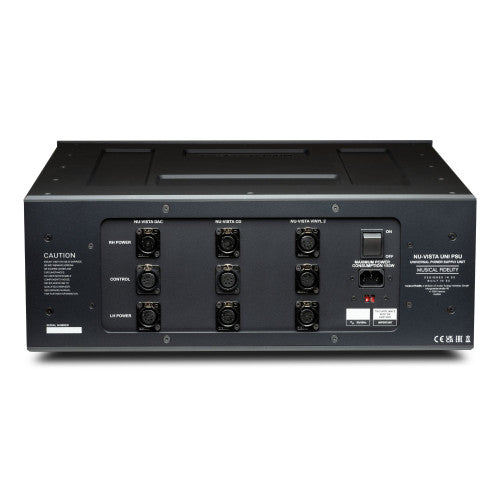

- Independent power for each audio channel and control system providing greater depth of audio channel separation
- One Power Cable Set* in 1m length included (allows connecting one source)
- Additional Power Cable Sets* in 1m and 3m lengths available separately
Product Description:

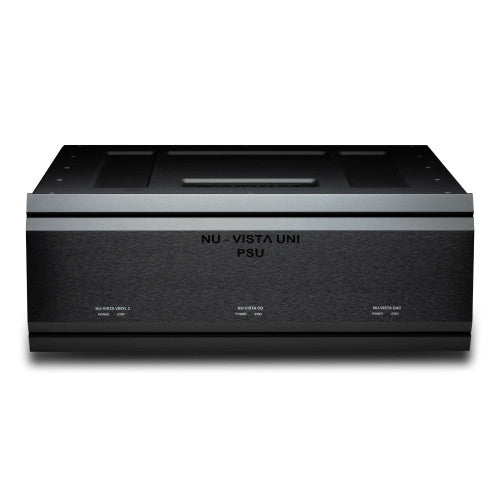

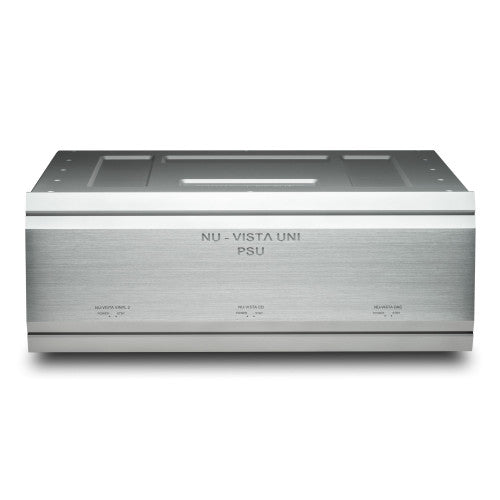

The Nu-Vista Uni PSU is a power supply upgrade for the Nu-Vista Vinyl 2, Nu-Vista DAC and a yet to be announced new Nu-Vista CD player.

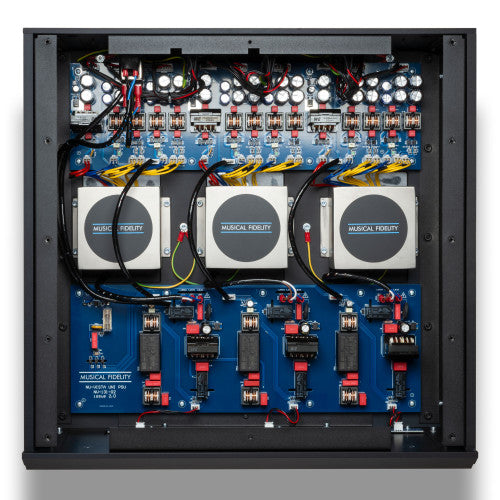

The Nu-Vista Uni PSU includes three completely separate power supplies. Each power supply consists of an independent encapsulated transformer made using special technology with shielding between windings, DC blocking circuitry and also a complex power filter to provide clean, independent voltage for your devices.
As in the Nu-Vista PRE, PAS and PAM, this approach will achieve better noise performance, by moving the AC mains power supply from the main unit and into another matching box. Independent power connections for each of the audio channels as well as for the control systems provide even greater sound depth and audio channel separation.
Musical Fidelity takes advantage of the extra space to set up mains and output filtering a step above what is usually possible in one-box-solutions. This quietens up the supplies and results in almost no mains-borne artifacts getting into the sensitive audio circuitry.
Specifications:
|
LH POWER - output voltages |
|
|
Voltage for heating the tubes |
16V DC |
|
Positive voltage for audio circuits |
+34V DC |
|
Negative voltage for audio circuits |
-34V DC |
|
RH POWER - output voltages |
|
|
Voltage for heating the tubes |
16V DC |
|
Positive voltage for audio circuits |
+34V DC |
|
Negative voltage for audio circuits |
-34V DC |
|
CONTROL - Output voltages |
|
|
Standby voltage |
5V DC |
|
Voltage for control circuits and display |
12V DC |
|
Control signals |
PWR_OK, PWR_ON |
|
Power requirement |
|
|
Mains voltages |
230V/115V selectable on the back panel, AC 50/60Hz |
|
Consumption |
150 Watts maximum, <0.5 W in standby (orange LEDs STANDBY) |
|
General Information |
|
|
Power cables included |
1 set (1m length; for Nu-Vista DAC, Vinyl 2 or CD connection) |
|
Dimensions (WxHxD) |
483 x 188 x 480mm |
|
Weight |
24.5 kg net |
Dimensions and Weight:
Overall - 483 x 188 x 480mm
Product Weight - 24.5 kg net
Warranty Information:
Warranty - 5 Years
