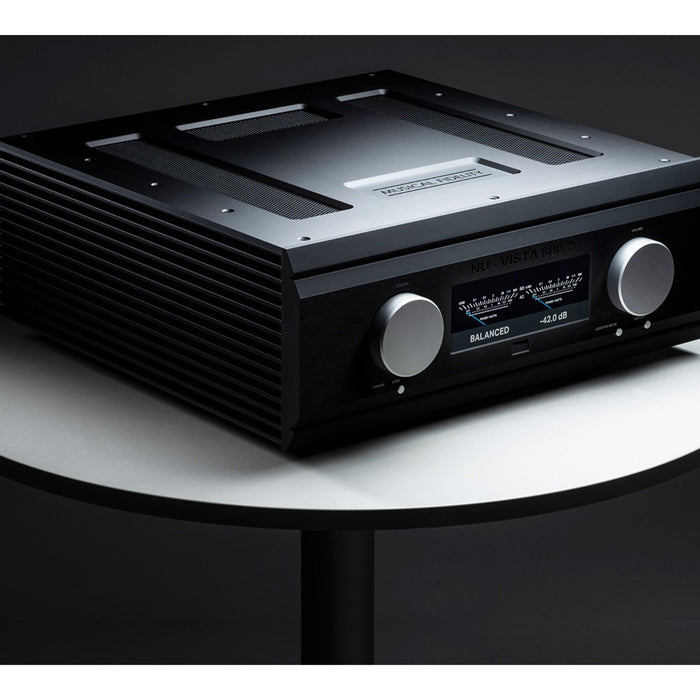

Musical Fidelity Nu-Vista 800.2 Integrated Amplifier
FREE shipping to contiguous US
FREE store pickup at TMR Erie, CO.
Earn 13,999 TMR Rewards points for this purchase.
Not a member? Join today >
Chat With a Hi-Fi Guide
FREE
Shipping
Financing
Available
Trade Up
& Save
Full
Warranty
60-Day
Returns
Lifetime Tech
Support
Free Shipping & Safe Delivery Guaranteed
All new products ship free within the contiguous United States.
Every order is backed by our TMR Safe Pack & Ship Guarantee. We carefully double-box every shipment to protect the manufacturer's packaging, and larger items are professionally packed and palletized when required for safe, upright delivery.
Every shipment is fully insured, with signature confirmation required on orders over $750.
In the rare event of loss or damage, we fully protect your purchase and handle the resolution for you.
We DO NOT offer international shipping.
60-Day Risk-Free Returns
We want you to feel confident investing in new HiFi. That’s why all new products come with 60-day risk-free returns, giving you time to listen, evaluate, and make sure it’s the right fit for your system.
Full Manufacturer Warranty
Every new product is backed by its full manufacturer warranty, giving you long-term peace of mind and direct support from the brand—on top of TMR’s expert guidance and customer care.
About Musical Fidelity Nu-Vista 800.2 Integrated Amplifier
Musical Fidelity Nu-Vista 800.2 Integrated Amplifier Key Features:
- A work of audio art using incredible Nu-Vista circuitry with 300WPC+

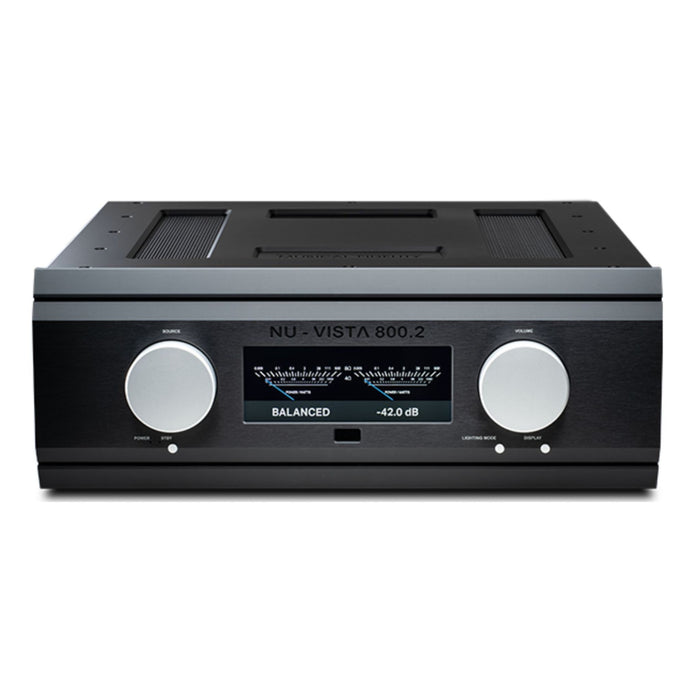

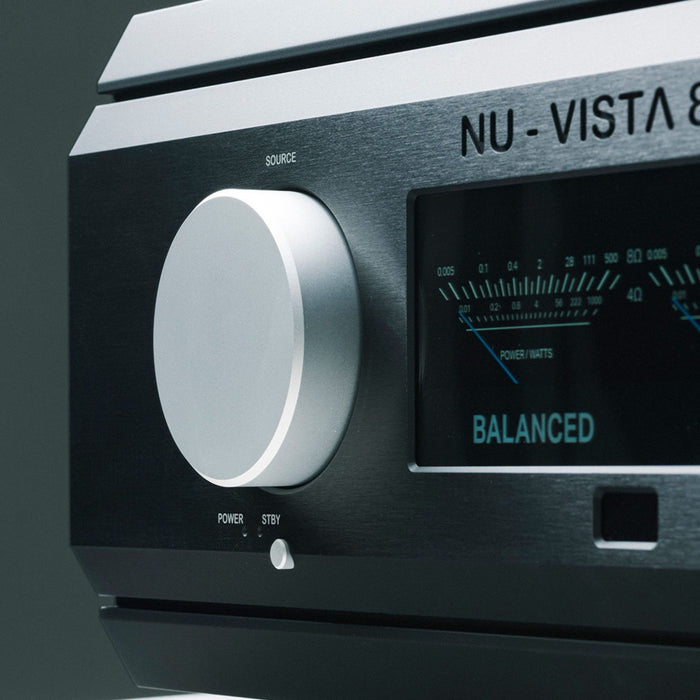

- Redesigned front panel with new display
- Rewound transformer for less noise
- Revised power supply circuits
- Remote on/standby
- Locally decoupled output stage taken from the TITAN power amp
- Total stability margin, will drive any loudspeaker with ease
- Cutting edge technical performance with the magic of Nu-Vistors
- Dual mono power amps with separate preamp
- Five versatile inputs - Balanced XLR, CD, Tuner, 2 x Auxiliary
- Both fixed line and variable pre outputs
- Home Theatre bypass
- Superb design, Heroic build quality
Product Description:
Redesign of a Classic
The original Nu-Vista 800 amplifier has long been favored as a top-tier hybrid integrated model. Introducing a modernized front plate and an entirely revamped display, the Nu-Vista 800.2 aligns with the updated Nu-Vista product design. To accommodate these changes, upgrades were made to the power supply circuits and electronic control systems, which also facilitated the addition of a long-awaited remote on/standby function.
Improved Circuit Design

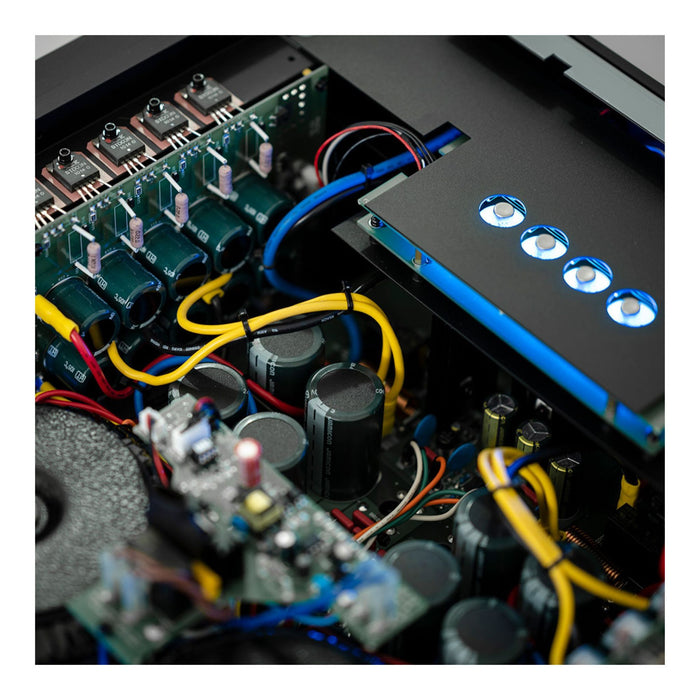

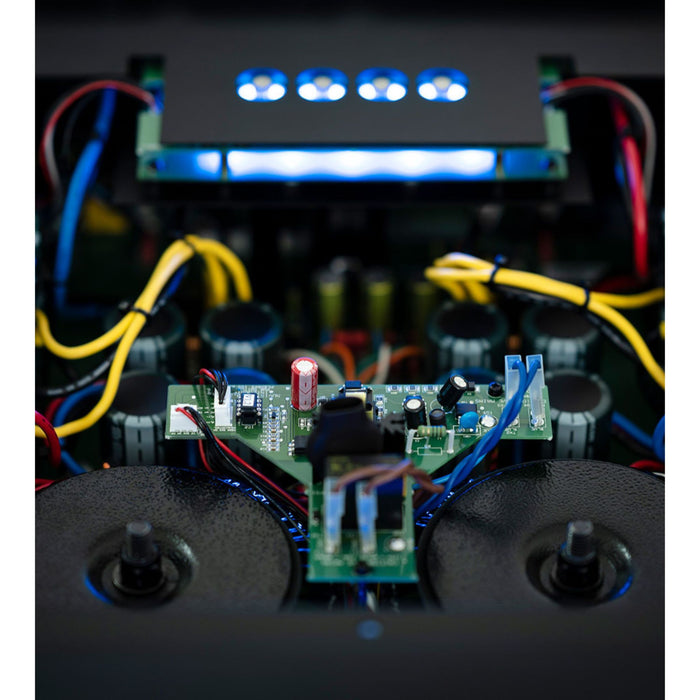

Having taken inspiration from Musical Fidelity’s TITAN, the new design features capacitors placed near the output transistors, resulting in stored energy that is readily accessible via a lower impedance pathway. This produces enhanced transient response and improved ripple filtering at higher currents. The primary supply capacitors, located near the rectifiers, further reduce supply impedance, effectively isolating rectification and hum noise from the high-gain PA circuit.
The transformers have also been rewound, and are less prone to mains DC noise thanks to a lower standing flux.
Uncompromising Build Quality

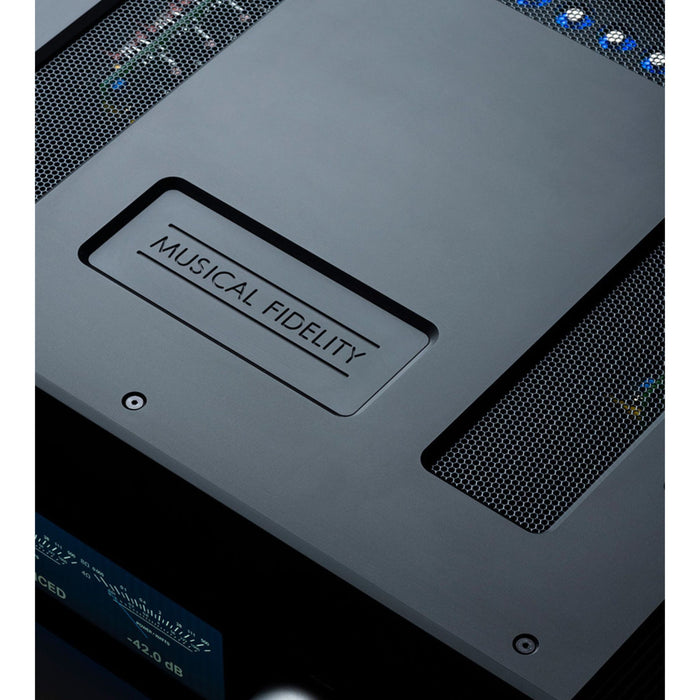

The Nu-Vista 800.2 embodies Musical Fidelity's unwavering commitment to rigid, quality construction. Crafted from milled extruded aluminum profiles, the front panel and side panels are massive, ensuring isolation from environmental vibrations. Additionally, the robust aluminum casing acts as a Faraday cage, shielding the internal components from external electromagnetic fields and safeguarding other HiFi equipment from the unit's own electromagnetic field.
Specifications:
Output
|
Power |
330 Watts per channel into 8 Ohms 500W into 4 ohms 1000W peaks into 2 ohms |
|
Voltage |
52 Volts RMS, 20Hz to 20 kHz; onset of clipping; 147 Volts peak to peak |
|
Current |
120 Amps peak to peak |
|
Damping factor |
200 |
|
Output devices |
5 pairs per channel |
Line Input
|
THD+N |
< 0.005 % typical, 20Hz to 20 kHz |
|
SNR |
> 107dB ‘A’-weighted |
|
Input impedance |
40 k Ohms |
|
Frequency response |
+0, –0.1dB, 10Hz to 30 kHz |

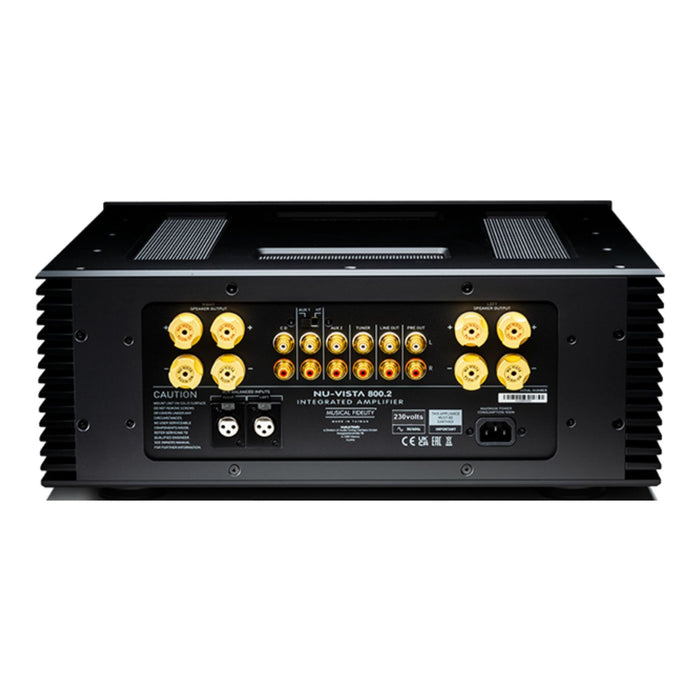

Connections
|
Line level inputs |
4 pairs line level RCA connectors 1 pair line level balanced XLR connectors |
|
Line level outputs |
1 pair line level RCA connectors, constant level LINE outputs 1 pair line level RCA connectors, PREAMP outputs for e.g. biamping |
|
Speaker outputs |
2 pairs 4mm banana plug/binding posts |
Power Requirements
|
Mains voltages |
115/230VAC 50/60Hz (factory pre-set) 100VAC 50/60Hz (alternative) |
|
Consumption |
<0.5W in standby mode (orange LED lit) 130W on and idle (blue LED lit) 900 Watts maximum |
Dimensions and Weight:
Overall - 483 x 187 x 510 mm
Product Weight - 41 kg
Shipping Weight - 29.5 kg
