Musical Fidelity BPC5 Power Conditioner Product Description:

Balanced, High-Current Power for Amplifiers and Source Components

The quality of power feeding your system is just as important as the components themselves. The Musical Fidelity BPC5 Balanced Power Conditioner is designed to deliver clean, stable, low-noise power to both high-current amplifiers and sensitive digital or analog source components.

Built for systems that demand more current than typical source-only conditioners, the BPC5 supports one power amplifier up to 800W while simultaneously isolating and protecting lower-power components for maximum sonic performance.

What is a Balanced Power Conditioner?

Balanced power conditioning reduces electrical noise by canceling common-mode interference present on standard AC lines. By lowering the system noise floor, balanced power helps reveal finer detail, improves instrument separation, and produces a more open, controlled soundstage.

The BPC series was engineered to deliver these benefits without compromising safety, reliability, or musicality.

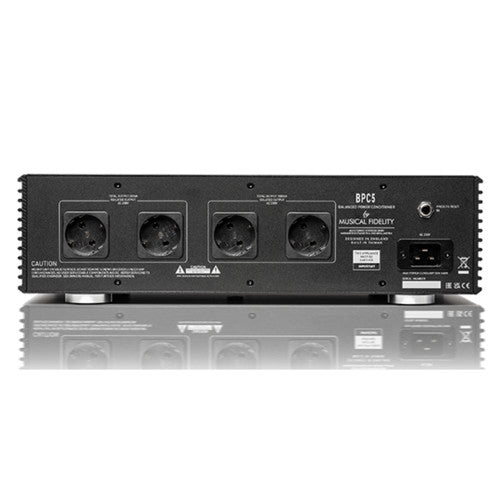

Dual Isolated Power Zones for Amplifiers and Sources

The BPC5 features two electrically isolated power zones, each designed for a specific type of load:

• 800 VA zone for one power amplifier up to 800 W
• 200 VA zone for digital and analogue source components

This design prevents differential-mode noise and cross-contamination between connected devices.

Typical applications include:

• Power amplifiers
• Preamplifiers
• Phono stages
• DACs and streamers
• CD players and digital sources

We recommend connecting devices with switch-mode power supplies to one zone and linear power supply components to the other. A power strip may be used if needed, provided the maximum output per zone is not exceeded.

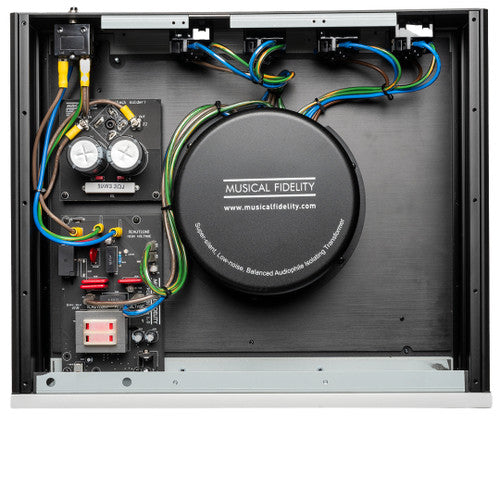

Super-Silent Toroidal Transformer Design

At the core of the BPC5 is a high-efficiency balanced toroidal transformer, chosen for its superior electrical performance and ultra-low noise characteristics.

Benefits of the Toroidal Transformer

• Approximately 90% efficiency for minimal energy loss
• Extremely low electromagnetic radiation compared to EI transformers
• Reduced mechanical vibration for silent operation
• Excellent common-mode noise rejection for cleaner power delivery

This design results in lower noise, improved dynamic contrast, and more stable power under load—especially important for power amplifiers.

Advanced Surge Protection Without Sonic Compromise

Unlike conventional shunt-mode surge protectors that divert excess voltage to ground, the BPC5 uses series-mode surge suppression.

This approach:

• Absorbs voltage surges more than 2V above peak line voltage
• Prevents ground contamination
• Protects connected equipment without degrading sound quality

Your system stays protected while maintaining clean, noise-free power.

Overload Protection & Input Voltage Monitoring

The BPC5 includes comprehensive protection and monitoring features for long-term reliability:

Protection Features

• Overload protection via resettable “No-Fuse-Breaker”
• Under-Voltage (UVP) and Over-Voltage (OVP) protection
• Front-panel LED indicators:
  • Green: normal operating conditions
  • Red: input voltage outside safe range

These safeguards ensure your system remains protected even in unstable power environments.

Audible Performance Benefits

When integrated into a high-resolution HiFi system, the BPC5 can deliver:

• Larger, more stable soundstage
• Improved bass control and definition
• Better separation of instruments
• Lower perceived noise floor
• Increased dynamic headroom for amplifiers

BPC5 Key Features

• 4 total power outlets
• 2 isolated power zones
• 1 × 800 VA zone, 1 × 200 VA zone
• 5A / 1200 VA combined peak power
• Balanced, low-noise toroidal transformer
• RFI attenuation greater than 57 dB
• Series-mode surge protection and DC blocking (>2V)
• Over-voltage, under-voltage, and overload protection
• Massive aluminum front plate with heavy steel chassis

BPC5 Specifications

Power Conditioning

• Output Voltage: 110–120V / 220–240V
• RFI Attenuation: >57 dB @ 235 kHz, >40 dB up to 1 MHz
• Balanced toroidal power transformer
• Surge protection and DC blocker ≥ 2V

Power Outputs

• Total Outlets: 4
• Isolated Power Zones:
• 1 × 200 VA
• 1 × 800 VA
• Peak Combined Output: 1200 VA / 5A
• Maximum Rated Output: 800 VA

General

• Mains Voltage: 110–120V / 220–240V AC, 50/60 Hz
• Max Power Consumption: 800W
• Dimensions (W × H × D): 440 × 125 × 400 mm
• Weight: 20.6 kg net / 25 kg boxed

Ideal Use Case

The BPC5 is ideal for systems running:

• One power amplifier up to 800W
• Multiple digital and analogue source components
• High-resolution systems sensitive to power quality

The Bottom Line

The Musical Fidelity BPC5 Power Conditioner delivers clean, balanced, high-current power for both amplifiers and sources. By isolating components, reducing noise, and protecting your system, it allows your HiFi setup to perform at its full potential—without compromise.
