Musical Fidelity BPC10 Power Conditioner

Musical Fidelity BPC10 Power Conditioner Product Description:

High-Current Balanced Power for Large Hi-Fi and Home Theater Systems

Power quality becomes increasingly critical as HiFi and home theater systems grow in size and complexity. The Musical Fidelity BPC10 Balanced Power Conditioner is designed to deliver clean, stable, high-current power to large systems running multiple amplifiers, subwoofers, and source components.

With three isolated power zones and up to 1550 watts available for power-hungry amplifiers, the BPC10 provides the headroom, isolation, and protection required by demanding HiFi and home cinema setups.

What Is a Balanced Power Conditioner?

Balanced power conditioning reduces electrical noise by canceling common-mode interference present on standard AC power lines. Lower noise at the power level results in a quieter system, improved instrument separation, better bass control, and a more expansive soundstage.

The BPC series was engineered to deliver these benefits safely and consistently, even in high-current environments.

Three Isolated Power Zones for Large Systems

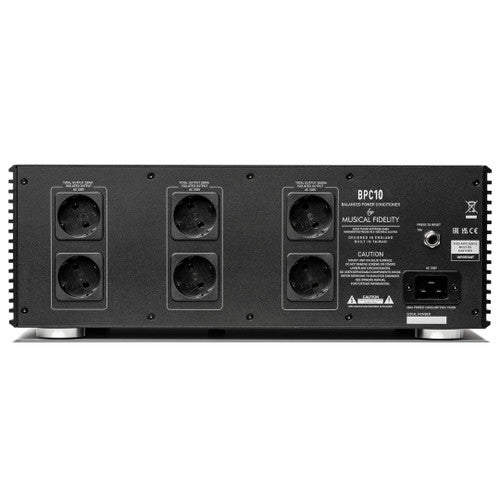

The BPC10 features three electrically isolated power zones, each designed for specific system demands.

• One high-current 1550 VA zone for power amplifiers or active subwoofers
• Two 200 VA zones for digital and analogue source components

This architecture allows you to isolate high-current devices from sensitive electronics, preventing differential-mode noise and cross-contamination between components.

Typical applications include:

• Multiple power amplifiers
• Active subwoofers
• Digital and analogue source components
• Projectors and home theater electronics

If additional outlets are required, a power strip may be used, provided the maximum output per zone is not exceeded.

Super-Silent Toroidal Transformer Design

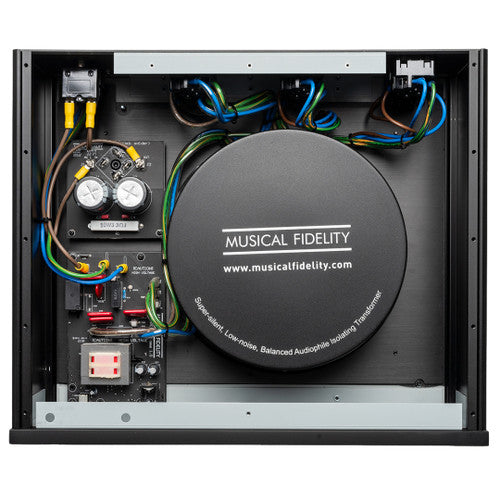

At the core of the BPC10 is a high-efficiency balanced toroidal transformer, chosen for its ability to deliver high current with minimal noise and electromagnetic radiation.

Benefits of the Toroidal Transformer

• Approximately 90% efficiency, reducing heat and energy loss
• Extremely low electromagnetic radiation compared to EI transformers
• Minimal mechanical vibration for silent operation
• Excellent common-mode noise rejection for cleaner power delivery

This design ensures stable power delivery even under heavy amplifier loads.

Advanced Surge Protection Without Sonic Compromise

The BPC10 uses series-mode surge suppression rather than conventional shunt-mode designs.

This approach:

• Absorbs voltage surges more than 2V above peak line voltage
• Prevents ground contamination
• Protects sensitive electronics without degrading audio or video performance

Overload Protection and Input Voltage Monitoring

The BPC10 includes comprehensive safety and monitoring features to protect connected equipment.

Protection Features:

• Resettable No-Fuse-Breaker for overload protection
• Under-Voltage (UVP) and Over-Voltage (OVP) protection

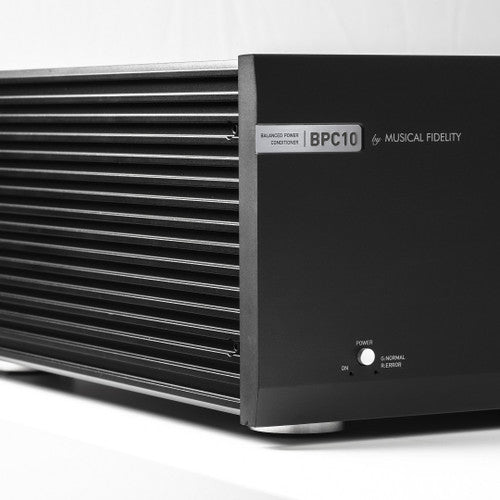

• Front-panel LED indicators:
  • Green: normal operation
  • Red: input voltage outside the safe range

Audible Performance Benefits

When used in large Hi-Fi or home theater systems, the BPC10 can deliver:

• Improved bass control and authority
• Cleaner dynamics at high listening levels
• Better separation between channels and components
• Reduced background noise
• Greater system stability under load

Musical Fidelity BPC10 Power Conditioner Key Features

• 6 power outlets
• 3 isolated power zones
• 1 × 1550 VA zone and 2 × 200 VA zones
• 10A / 2400 VA combined peak power
• Balanced, low-noise toroidal transformer
• RFI attenuation greater than 57 dB
• Series-mode surge protection and DC blocking (>2V)
• Over-voltage, under-voltage, and overload protection
• Massive aluminum front plate with heavy steel chassis for shielding

BPC10 Specifications

Power Conditioning

• Output voltage: 110–120V / 220–240V
• RFI attenuation: >57 dB @ 235 kHz, >40 dB up to 1 MHz
• Balanced toroidal power transformer
• Surge protection and DC blocker ≥ 2V

Power Outputs

• Total outlets: 6
• Isolated power zones: 2 × 200 VA, 1 × 1550 VA
• Peak combined output: 2400 VA / 10A
• Maximum rated output: 1550 VA

General Information

• Mains voltage: 110–120V / 220–240V AC, 50/60 Hz
• Maximum power consumption: 1550W
• Dimensions (W × H × D): 440 × 162 × 400 mm
• Weight: 33 kg net / 39.5 kg boxed

Ideal Use Case

The BPC10 is ideal for large Hi-Fi systems with multiple amplifiers, high-current power amplifiers up to 1550W, home theater systems with projectors and subwoofers, and systems that demand maximum electrical isolation and power stability.

The Bottom Line

The Musical Fidelity BPC10 Power Conditioner delivers clean, balanced, high-current power for demanding systems. With three isolated zones, serious headroom, and comprehensive protection, it allows large HiFi and home theater setups to perform at their full potential.
