About ModWright Linear Power Supply for Weiss DAC 204 & 205

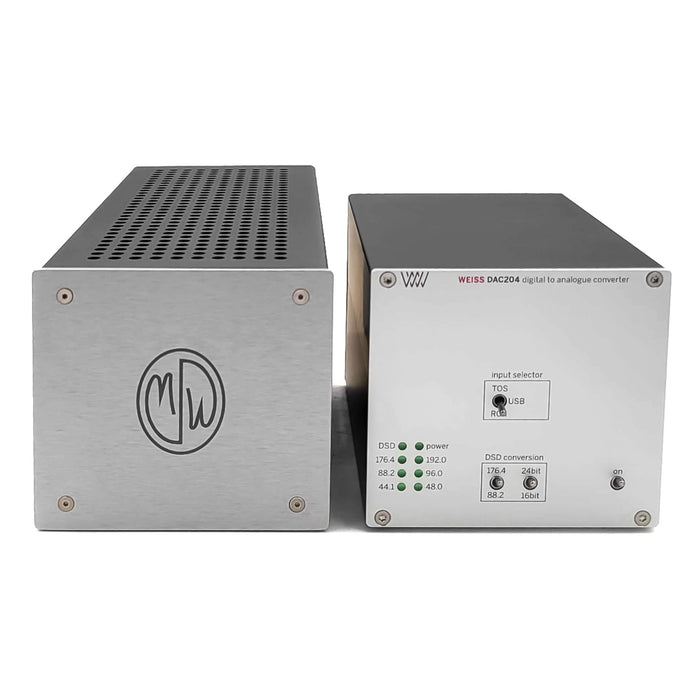

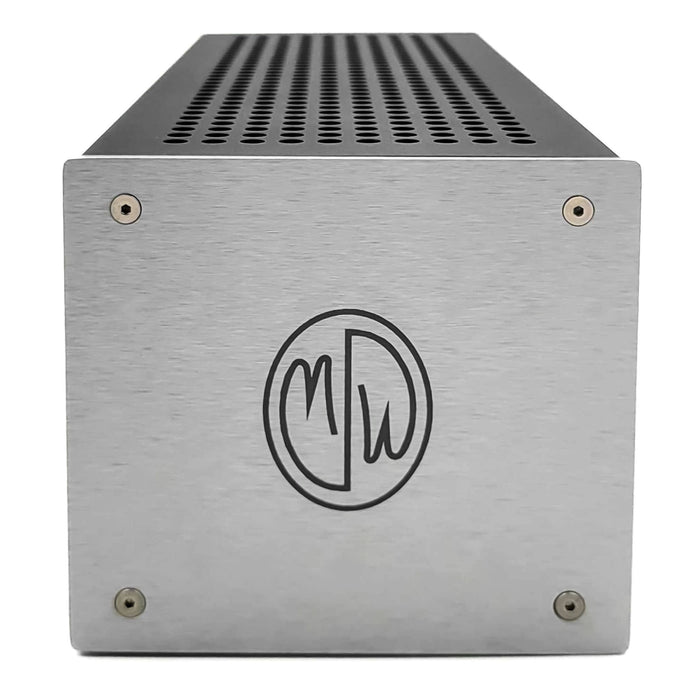

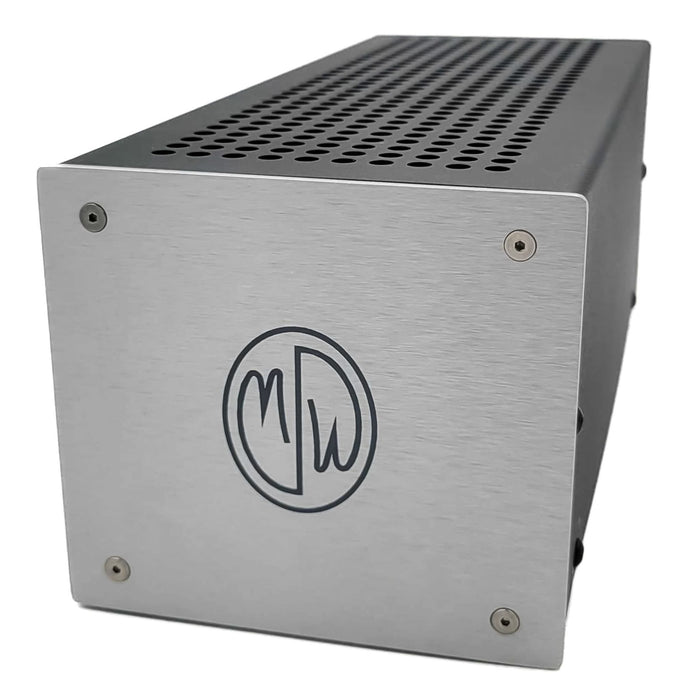

ModWright Linear Power Supply for Weiss DAC 204 & 205 Product Description:
The ModWright Linear Power Supply (LPS) for the Weiss DAC 204 and 205 is crafted to deliver low noise and high power. It incorporates redundant voltage regulators along with AC mains and DC filtering. The power transformer is oversized by 500%, ensuring there is no current limiting.
When compared to the standard switching supply included with the Weiss DAC 204, the ModWright LPS significantly reduces the noise floor. This reduction enhances bass response, expands the soundstage, and improves detail and resolution.
The Weiss DAC 204 offers exceptional performance and value for a DAC priced under $4,000. It supports comprehensive input and output connectivity for both digital and analog signals and is compatible with all current high-resolution formats. Despite its compact and space-saving design, the power supply must be external. The stock Weiss DAC 204's primary shortcoming is its standard power supply.

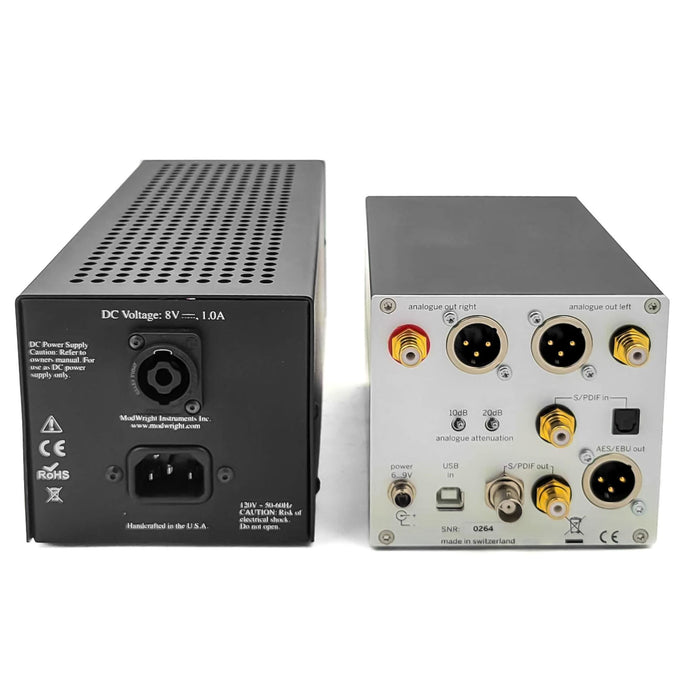

The ModWright power supply package includes a 3-foot, 2-conductor umbilical cable, featuring a SpeakON connector at the power supply end and a 2.5mm stereo jack at the DAC input.
Operating Instructions:
When first installing the ModWright Weiss DAC power supply, first plug an AC power cord into the Weiss DAC. This should always be a fully grounded AC power cord.
Making sure that the Weiss DAC is POWERED OFF, connect the SpeakON connector end of the umbilical to the Weiss DAC power supply.
Connect the 2.5mm stereo jack end of the umbilical into the Weiss DAC power entry jack.
When you power on the Weiss DAC, there will be a momentary delay before it fully powers up, of about a second.
Always power the Weiss DAC off before plugging or unplugging the power supply.
Please Note: The power supply is always getting power and always on. The Weiss DAC however, is not powered on until you turn the Weiss DAC on via the front toggle switch.
Specifications:
|
DC Output |
9V DC (8V indicated on rear of enclosure) |
|
Fuse Size |
0.30 amp |
Dimensions and Weight:
Overall - 4.2”W x 3.8”H x 10”D
Shipping Dimensions - 8”W x 8”H x 14”D
Product Weight - 4.5 lbs
Shipping Weight - 6.0 lbs
