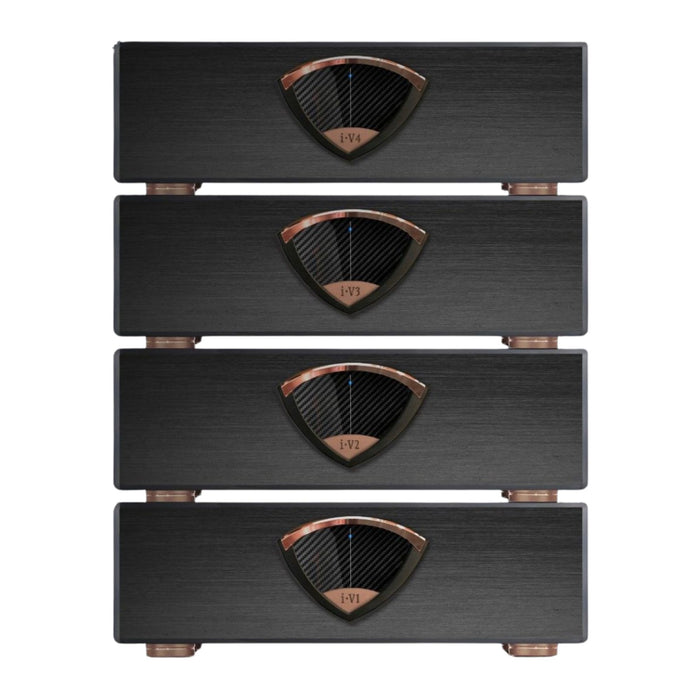

About Legacy Audio iV ULTRA Series Monoblock Amplifier
Key Features
- Short circuit protection
- Peak output current of 38A
- Thermal protection
- Triggered On/Off
- Standby switch
- Front panel status indicator
Featuring state of the art high-efficiency class D amplification technology, the elegant Legacy iV ULTRA amplifiers approach 80% efficiency while delivering high power through monoblock, two, three, and four output amplifiers.
The Legacy iV1 ULTRA is a state-of-the-art monoblock amplifier designed for the most demanding audio systems while the iV2, iV3, and iV4 are two, three, and four channel amplifiers respectively.
Featuring cutting-edge technology, these Legacy Audio amplifiers deliver a remarkable power with near 80% efficiency. Their high current and voltage capabilities ensure stable performance into low impedances, providing a virtually noise-free, crystal-clear sound.
Ideal for audiophiles and professionals, the iV ULTRA series offers a new level of power and control without the drawbacks of excessive heat or transformer hum.
Specifications
| Power Rating | iV1 ULTRA: 1600 watts/channel @ 4 ohms; 1125 watts/channel @ 8 ohms |
| iV2 ULTRA: 1000 watts/channel x 2 @ 4 ohms; 610 watts/channel x 2 @ 8 ohms, all channels driven | |
| iV3 ULTRA: 1000 watts/channel x 3 @ 4 ohms; 610 watts/channel x 3 @ 8 ohms, all channels driven | |
| iV4 ULTRA: 1000 watts/channel x 4 @ 4 ohms; 610 watts/channel x 4 @ 8 ohms, all channels driven | |
| Peak Power | iV1: 2.0 kW peak power @ 4 ohms / 1 kHz, <1% distortion |
| iV2, iV3, iV4: 1.4 kW peak power from any channel @ 4 ohms / 1 kHz, <1% distortion | |
| Over Current Protection | Breaker reset for excessive sustained current |
| Inputs | Fully balanced XLR, single-ended RCA |
| Outputs | Gold-plated, safety-approved five-way binding posts |
| Damping Factor | 800 average, 20 Hz to 1 kHz |
| Voltage Gain | 29.5 dB |
| Dynamic Range | 127 dB, A-weighted |
| Voltage/Current | 149 Vp / 38 Ap |
| Input Sensitivity | 5.0 Vp @ 1200 W / 4 ohms |
| Input Impedance | 38 kOhm for both pin 2+ and pin 3- |
| Channel Separation | 120 dB at 1 kHz |
| Unit Dimensions | 17.5″ W x 15.6″ D x 5.8″ H |
| Unit Shipping Weight | iV1 ULTRA: 33 lbs; iV2 ULTRA: 30 lbs; iV3 ULTRA: 35 lbs; iV4 ULTRA: 38 lbs |
