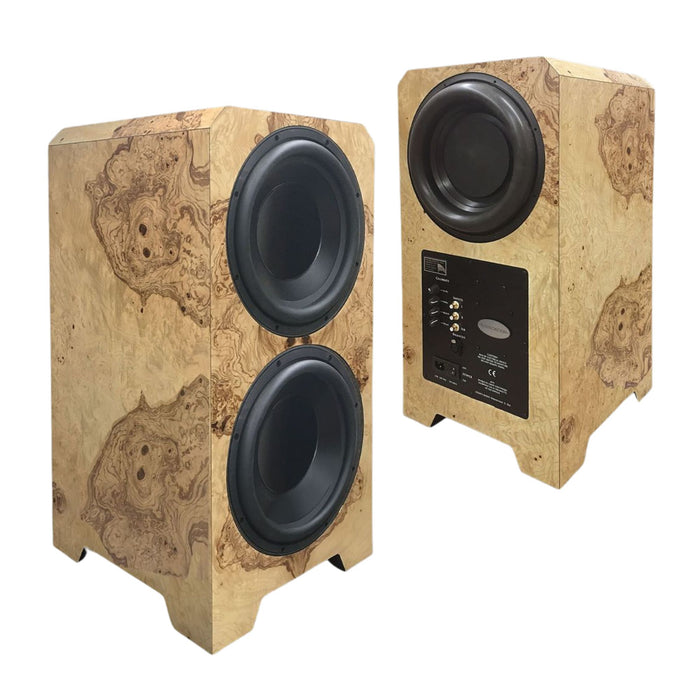

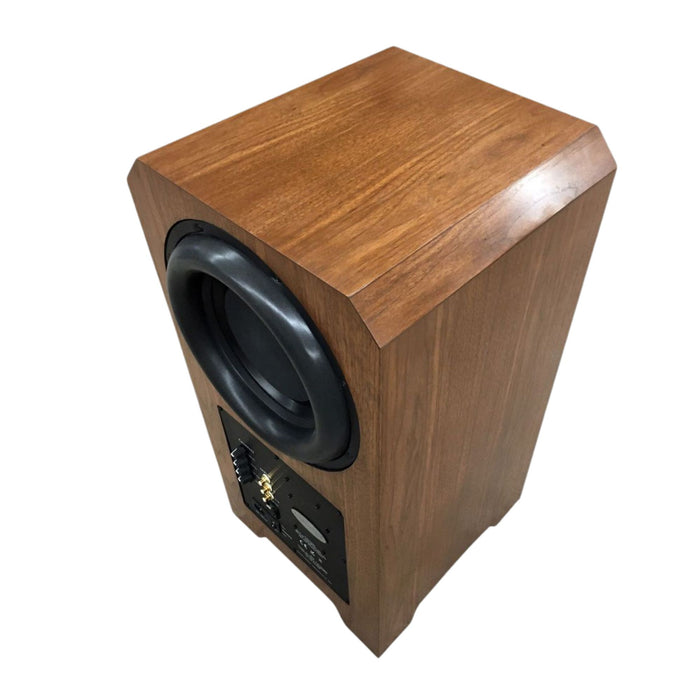

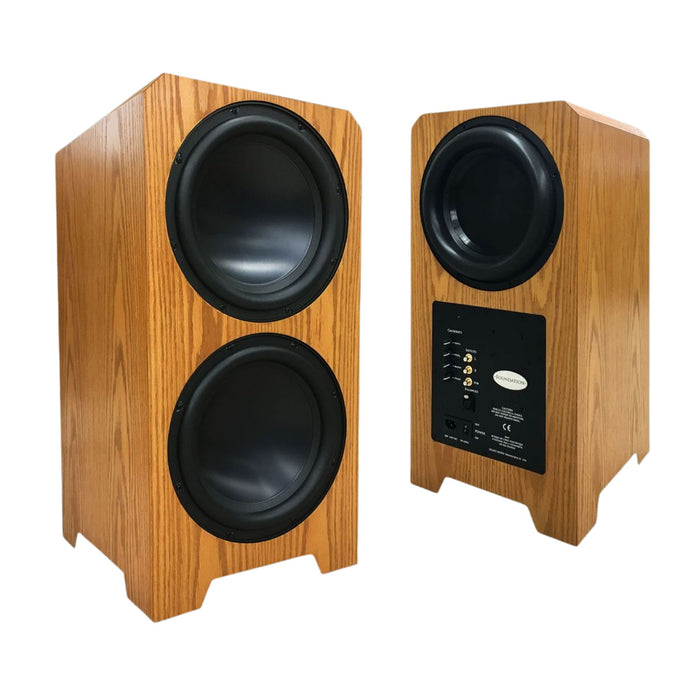

Legacy Audio Foundation Subwoofer

Legacy's new Foundation is a dynamic dual subwoofer system, delivering essential lower frequency output. Foundation delivers incredible attack with ultra-low distortion and world class definition utilizing only 1.5 square feet of floor space.

About

Lowest frequencies emerge from Legacy's Foundation subwoofer with exceedingly low distortion. Exhibiting extremely natural bass weight and transient attack, Foundation requires a mere 1.5 square feet of floor space.

Implementing patented compound passive radiator technology and a pair of Legacy's renown long throw 12" woofers, Foundation delivers a more forceful attack, rebounding without the usual mechanical shuddering present in subwoofers. Foundation offers exceptional tonality and bass definition previously unattainable at this price level.

Supercharged with ICEpower® amplifier technology, Foundation benefits from 30 amps of peak current, ultimately necessary to provide tight control to the 3 inch voice-coil within the massive 30 lb magnetic structure of each cast-frame woofer. Legacy invites you to compare this subwoofer with any competing subwoofer….we think you’ll be amazed!

Ultra Long Throw 12" Subwoofer

Foundation utilizes a pair of our ultra long throw 12" subwoofers. This driver offers the highest Xmax available in its efficiency class, a 3" dual 4 layer voice coil and a 480oz (30lb) motor structure. The powerful motor structure and dual 3" voice-coils are required to keep the woofer's heavy cone well damped electrically. The voice-coil leads are woven into the spider so they can't slap the cone on large excursions. The internal ICEpower® amplifier's current capability is an ideal match for the series/parallel load of the 4 voice-coils.

Fine Tuning

Foundation provides variable level control, continuous phase adjustment and a wide range of crossover frequencies. Also included is our unique blend control to finesse the transition in the overlap area from your main speakers. These controls will allow you to tailor the sound of the sub to your room and integrate with your main speakers.

Best Subwoofer Award

The Legacy Foundation received a "Best of 2018" Award from Secrets of Home Theater & High Fidelity for Best Subwoofer.

"The Foundation had amazing power reserves and deep extension. It also reproduced musical pieces equally as well as cranking out the big bass effects of my favorite movies. It’s an all-around winner which even includes its fetching good looks!"

Jim Clements, Co-Editor, Secrets of Home Theater & High Fidelity

Specifications

Application:
Dynamic dual subwoofer system, delivering essential low frequency output
System Type:
Mutually coupled subwoofers, pneumatically loaded
Subwoofer:
(2) 12" spun aluminum diaphragm, 480oz motor structure, cast frame, 3" dual 4 layer voice coil, 2" peak to peak travel
Passive Radiator:
(2) 12" Patented Symmetrically Loaded Passive System radiators, 4" peak to peak travel
Low Frequency Alignment:
Electrically assisted 6th order
Inputs:
Sub (LFE), L/R RCA, balanced XLR
Internal Amplification:
1000 Watts Class D ICEpower®
Freq. Response (Hz, +/- 2dB):
16-120
Impedance:
10k Ohms
Phase Adjustment:
Continuous +/-180
Blend EQ:
+/- 12 dB @45Hz
Max SPL:
120 dB @ 1m
Low Pass Filter Slope:
18 dB per octave
Crossover (Hz):
40-120
Dimensions (HxWxD, inches):
29 x 14.5 x 15
Weight:
113 lbs
