About HiFi Rose RD160 DAC
HiFi Rose RD160 DAC Key Features:

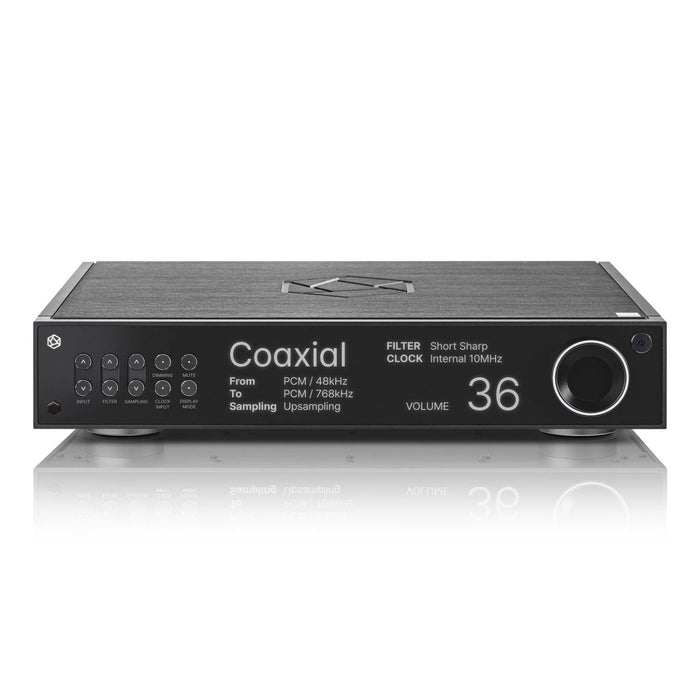

- Hidden AMOLED screen displays circuit diagrams and sound waves with responsive controls
- ROSE CIM™architecture with AK4191 and AK4499EX chips for noise isolation and high SNR
- Balanced DAC modules and JFET output stage for dynamic range and clear stereo imaging
- Independent linear power supplies minimize noise and crosstalk
- External master clock input ensures perfect synchronization and reduces jitter
- High precision OCXO clock enhances audio accuracy by reducing jitter
Specifications:
|
Finish |
Solid Aluminum, Rust-proof Steel, available in Silver or Black finishes |
|
Display |
2 ✕ Polycarbonate AMOLED hidden screen (MIPI-DSI) |
|
Color |
Silver, Black |
|
Input Voltage |
AC100-120V, 220-240V, 50/60Hz |
|
CPU |
Quad-core ARM Cortex-A7MP |
|
RAM |
1GB DDR3 (1866Mhz Data Rate) |
|
Flash |
8GB eMMc |
|
Oscillator |
OCXO (Oven Controlled Crystal Oscillators) |
|
PCM Filter |
Sharp Roll-off, Slow Roll-off, Short Delay Sharp Roll-off (default), Short Delay Slow Roll-off, Super Slow Roll-off, Low Dispersion Short Delay |
|
PCM/DSD Upsampling |
PCM 44.1kHz to 705kHz, PCM 48.0kHz to 768kHz, DSD64 to DSD512 |
|

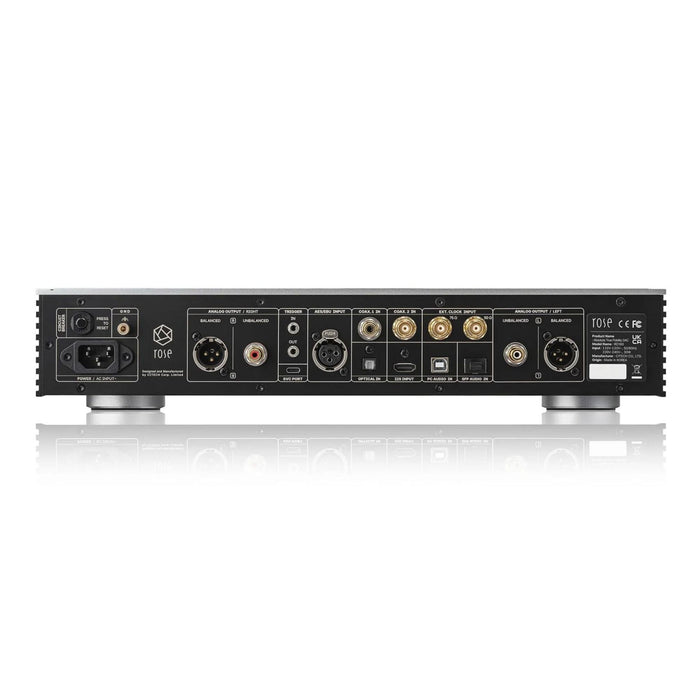

Digital Input |
1 ✕ USB SFP Module (32bit / 768kHz, Native DSD512), 1 ✕ USB Type-B 2.0 (32bit / 768kHz, Native DSD512), 1 ✕ HDMI I2S (32bit / 768kHz, Native DSD512), 1 ✕ OPTICAL RX (24bit / 192kHz, DoP64), 1 ✕ COAXIAL RCA (32bit / 384kHz, DoP128), 1 ✕ COAX BNC (32bit / 384kHz, DoP128), 1 ✕ AES/EBU XLR (32bit / 384kHz, DoP128) |
|
Analog Output |
2 ✕ Balanced XLR, 2 X Unbalanced RCA |
|
External Clock (10MHz) |
1 ✕ 75ohm BNC, 1 X 50ohm SMA |
|
Remote Control IR |
38kHz IR Receiver |
|
Sensitivity |
9Vrms @ 1kHz 0dBF (TBC) |
|
Frequency Response |
10Hz ~ 70kHz @ +1/-3dB (TBC) |
|
SNR |
132dB A-wt (TBC) |
|
THD |
0.0002% / 113dB (TBC) |
|
Dynamic Range |
129dB (TBC) |
Dimensions and Weight:
Overall - 16.9 x 12.9 x 4.8”
Product Weight - 22 lbs
Warranty Information:
Warranty - 2 years
