DS Audio PH-001 Phono Cable
FREE shipping to contiguous US
FREE store pickup at TMR Erie, CO.
Earn 2,500 TMR Rewards points for this purchase.
Not a member? Join today >
Chat With a Hi-Fi Guide
FREE
Shipping
Financing
Available
Trade Up
& Save
Full
Warranty
60-Day
Returns
Lifetime Tech
Support
Free Shipping & Safe Delivery Guaranteed
All new products ship free within the contiguous United States.
Every order is backed by our TMR Safe Pack & Ship Guarantee. We carefully double-box every shipment to protect the manufacturer's packaging, and larger items are professionally packed and palletized when required for safe, upright delivery.
Every shipment is fully insured, with signature confirmation required on orders over $750.
In the rare event of loss or damage, we fully protect your purchase and handle the resolution for you.
We DO NOT offer international shipping.
60-Day Risk-Free Returns
We want you to feel confident investing in new HiFi. That’s why all new products come with 60-day risk-free returns, giving you time to listen, evaluate, and make sure it’s the right fit for your system.
Full Manufacturer Warranty
Every new product is backed by its full manufacturer warranty, giving you long-term peace of mind and direct support from the brand—on top of TMR’s expert guidance and customer care.

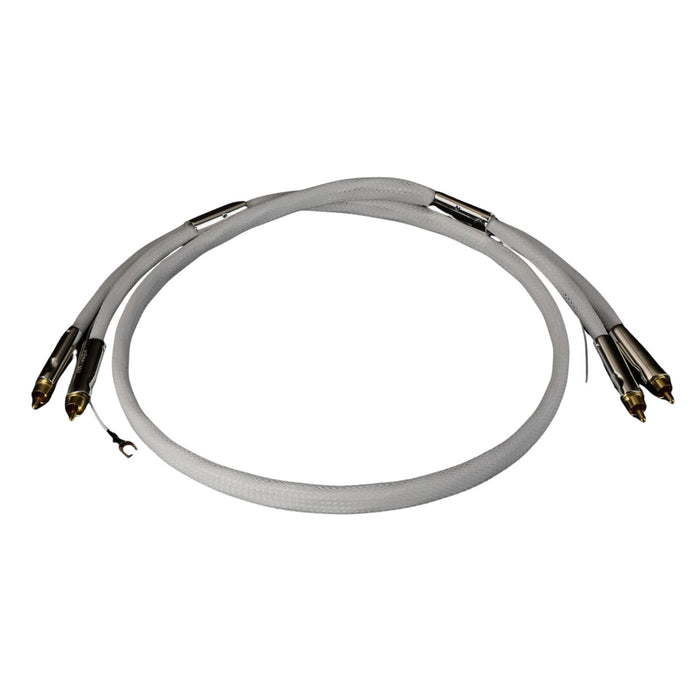

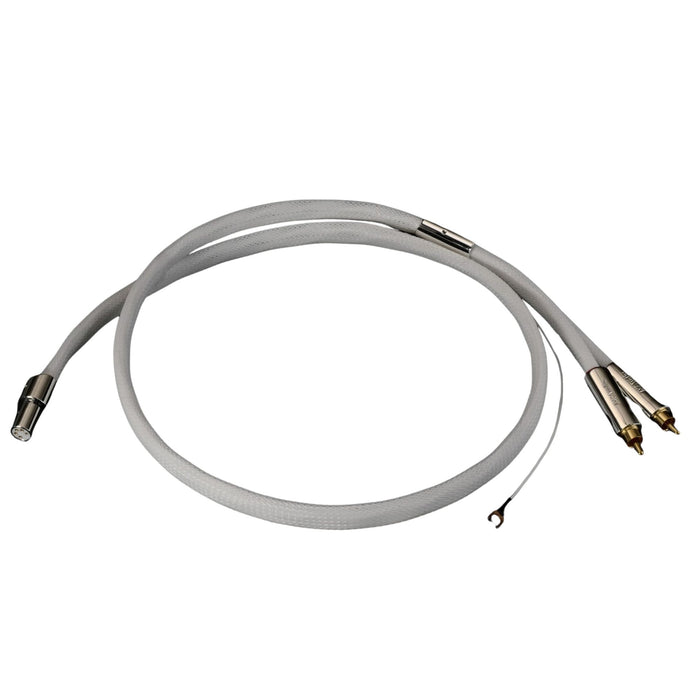

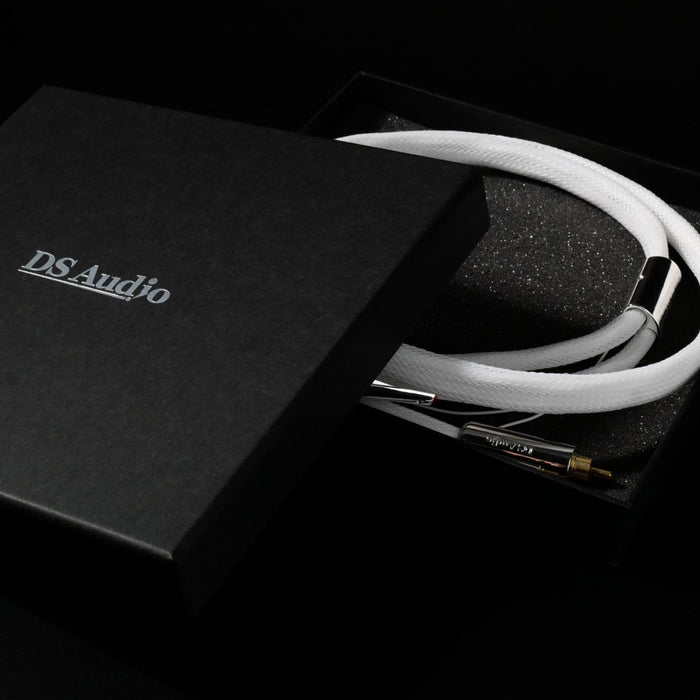

About DS Audio PH-001 Phono Cable
The highest quality construction throughout
When using an MM or MC cartridge, the cold side of the phono cable serves only as a ground. In the case of optical cartridges, however, the cold side supplies power from the equalizer to the cartridge. Therefore, in such an application, the cold side of the cable is just as important as the hot side. The PH-001 features identical materials and construction on both the hot and cold sides, ensuring that the power supply is kept stable.
Complete Shielding
Optical cartridges have a relatively high impedance, partly due to the photo sensors used in their design. Because of this high impedance, external noise may be picked up if an unshielded phono cable is used. The DS Audio PH-001 phono cable is shielded with a silver-plated copper braid, eliminating potential interference.
RCA terminals machined from pure copper
The PH-001 features RCA phono connectors machined from pure copper; the pure copper base conductor is then gold-plated. Such high-quality connectors allow even more musical detail and texture to shine through, along with a heightened sense of openness.
Silver-plated copper conductors
The PH-001 cable features silver-plated pure copper conductors, each made up of 37 strands of 0.26mm (about 0.01 in) diameter wire. This gives the conductor an exceptionally large cross-section area of 1.964m㎡.
Specifications
| RCA Terminals | Pure copper |
| RCA Terminal Body | Aluminum |
| Cable Outer Diameter | 15 mmφ |
| Cable Material | Silver-plated copper wire |
| Composition | φ0.26 mm / 37 wires |
| Conductor Cross-Sectional Area | 1.964 mm² |
| Insulator Material | FEP (fluoroplastic) |
| Shield | Mesh shield |
| Shield Material | Silver-plated copper wire |
| Length | 1.2 m |
| Specifications | Available terminations: DIN (Straight) to RCA, DIN (Right Angle), or RCA to RCA |
