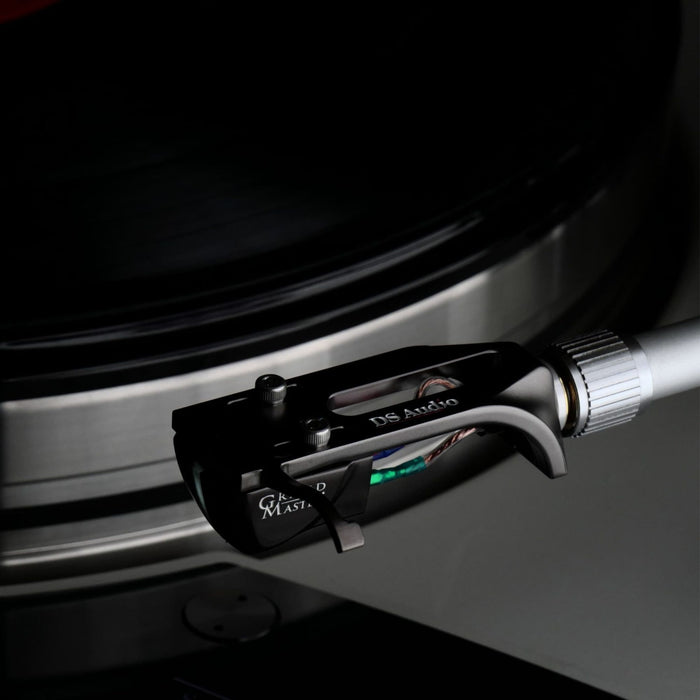

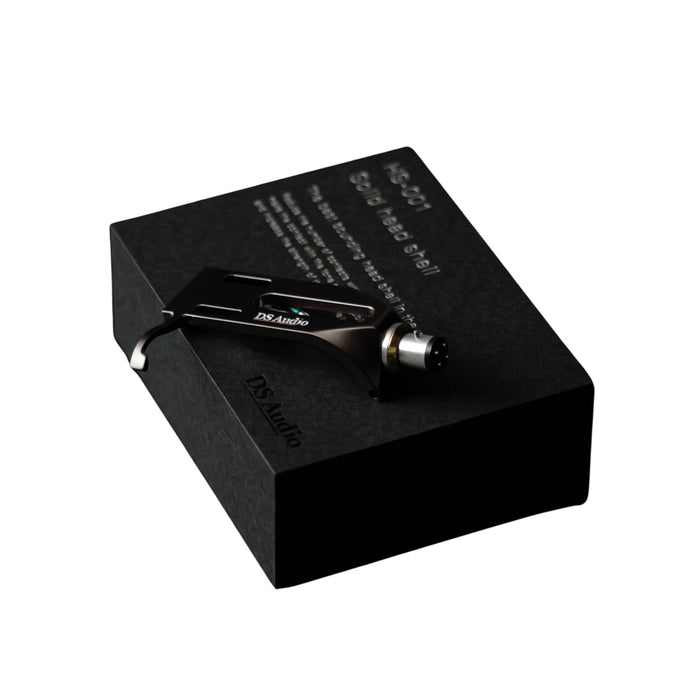

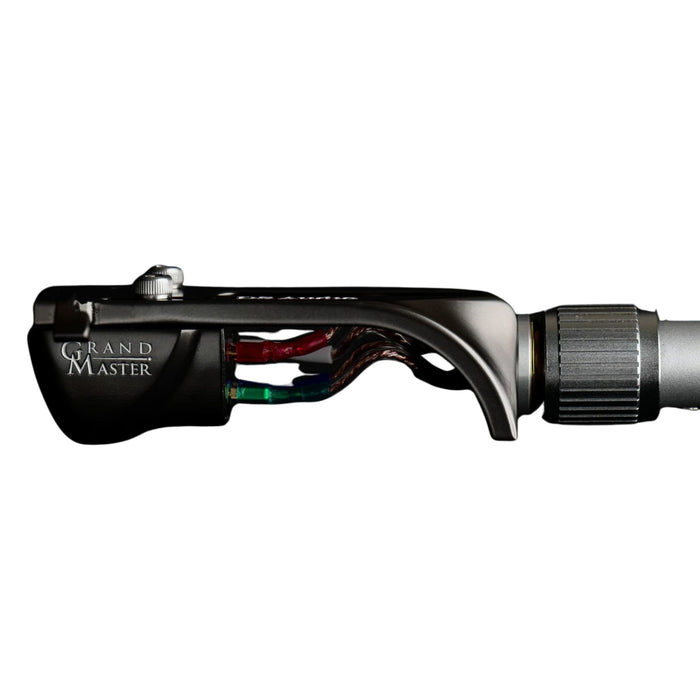

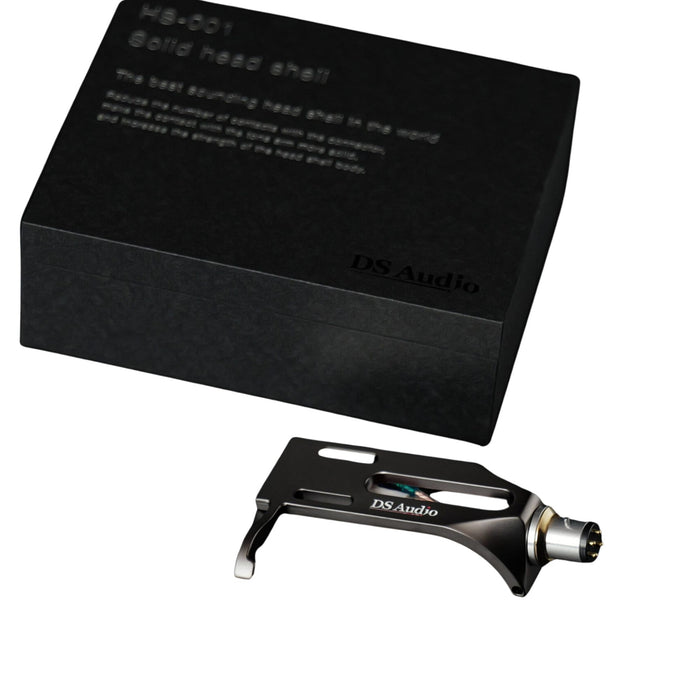

About DS Audio HS-001 Solid Head Shell
By minimizing contacts, increasing rigidity, and stabilizing the tonearm interface,
the HS-001 achieves unprecedented sonic purity.
A vertical pin structure achieves uniform pressure on electrical contacts
Contact surface stabilized by spherical washer
Conventional head shells have a connecting pin attached only to the upper side, causing uneven contact pressure between the tonearm and the headshell. However, the HS-001 Solid Headshell adopts an upper and lower pin structure, equalizing the pressure on the contacts and applying force evenly across the connection to the tonearm. Additionally, we use a special spherical headshell washer (developed by DS Audio) independently at the tonearm's contact point. This enables superior stability over the entire circumference of the contact point, providing improved resonance control.
Machined Ultra Duraluminum
DS Audio precision machines each HS-001 out of a solid billet of duralumin for the ultimate rigidity and resonance control.
Hand-soldered Litz signal leads
After extensive listening tests within the company, DS Audio selected a Japanese-made Litz wire. Further advances were realized by hand soldering this delicate lead wire to preserve signal integrity for optimal sound performance.
Specifications
Material: Ultra duralumin
Connector: Aluminum
Connector terminal: Gold plated
Lead terminal: Gold plated
External dimensions: H21mm × W40mm × D55 mm (without connector)
Weight: Approximately 10.5 grams (without leads)
Lead wire: Litz wire 4Nφ 0.08 × 10 × 3 yore rings
Hardware: Stainless steel M2.6 L8×2, M2.6 L12×2
