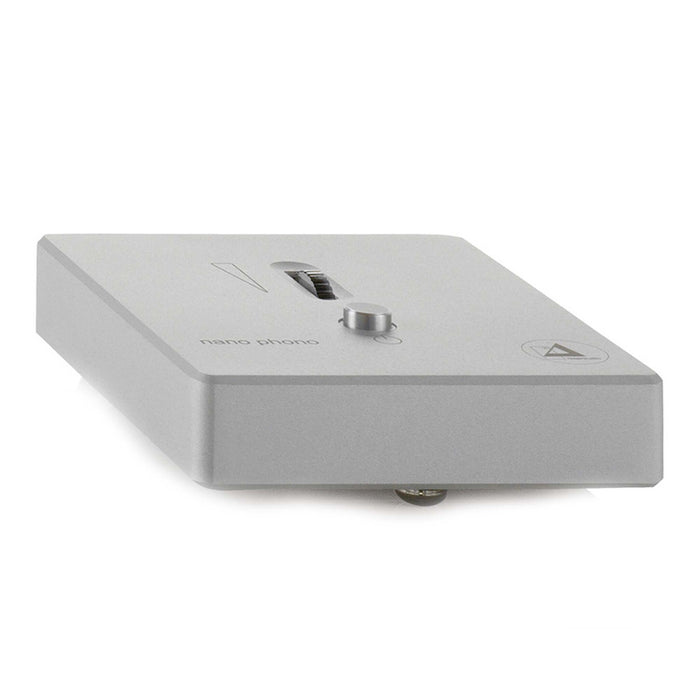

About Clearaudio Nano V2 Phono Stage
Clearaudio Nano V2 Phono Stage Product Description:
The Nano V2 phono stage delivers high-end performance with a small footprint at an affordable price. Combined with our Concept turntable, it is your entry to high-end analog sound.
The Nano V2’s small footprint lets you place it on the same shelf as the Concept and its very short signal paths create noise-free music reproduction. The printed circuit board is encased in a solid CNC-machined, resonance-free aluminum chassis. The latest sophisticated surface-mount technology is used in conjunction with precision electronic components, such as Burr-Brown (Texas Instruments) integrated circuits. The fully dual-mono design features separate left and right switches for moving magnet/moving coil, input loading and sub-sonic filter. A top-mounted power on/off button and level control allows level-matching between phono and other line inputs, The thumb wheel level control adjusts the volume of the headphones in the HP version.
SPECIFICATIONS:
Modes Switchable moving coil / moving magnet
Amplification at 1 kHz 54-68 dB (moving coil), 34-48 (moving magnet)
RIAA (75 µs/318 µs /3180 µs) Yes
RIAA accuracy ± 0,4 dB @ 20 Hz – 50 kHz
Signal-to-noise ratio 70 dB / moving coil ("A" weighted), 81 dB / moving magnet ("A" weighted)
Maximum output voltage 10 V (at 1 kHz)
THD < 0.006% MC ("A" weighted @ 1kHz/-1dB @ max)
Headroom 18 dB / moving coil
Standby mode < .3 watt
Channel separation > 80 dB (at 1 kHz)
Power supply ± 18 V DC/300mA (external power supply)
Inputs/outputs Unbalanced RCA
Weight 1.1 lbs
Dimensions 3.34" x 4.17" x .98"
Warranty 3 years
