About Chord Electronics Qutest DAC
Key Features
- Materials: Precision machined aluminum casing with polycarbonate buttons and glass viewing portal.
- Device power supply: 5v 2amp Micro USB
- Tap length filter: 49,152 – 10 element Pulse Array design

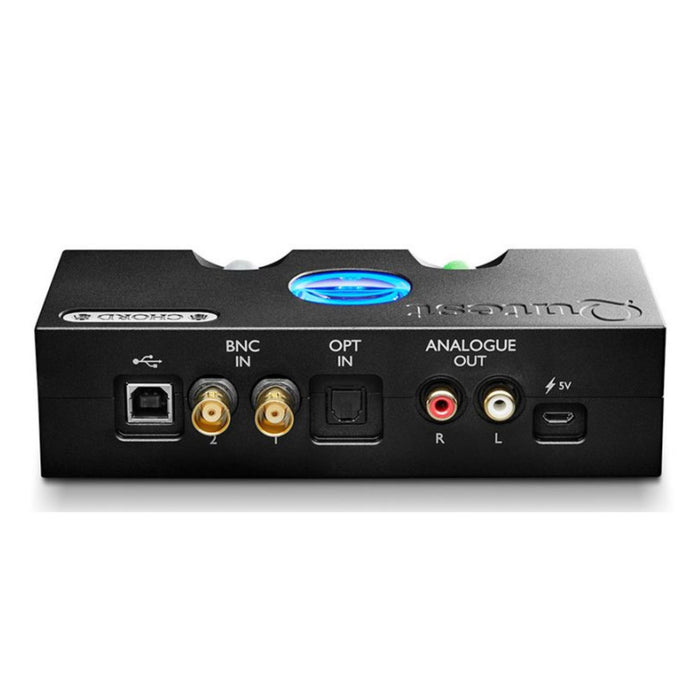

- Connectivity (input): USB Type B (White): 44.1kHz to 768kHz – 16bit to 32bit
- 2x BNC Coax (Red): 44.1kHz – 384kHz – 16bit to 32bit
- 1x Dual data mode input (using both BNC coax inputs together): 44.1kHz to 768kHz – 16bit to 32bit
- Optical (Green): 44.1kHz to 96kHz – 16bit to 24bit
- Connectivity (output): 1x stereo pair of RCA (Left and Right)
- PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit
- DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)
- Variable output: Fixed, but selectable between 3v (blue), 2v (green), and 1v (red) via dual press of ‘Filter’ + ‘Input’ upon startup
- Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS
- Digital designer: Rob Watts
- Mechanical designer: John Franks
- Country of manufacture: England
Qutest, which is a What Hi-Fi? Star of CES 2018, is based on our award-winning proprietary FPGA technology developed for the class-leading Hugo 2 DAC/headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits our digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernize ageing digital source components.
The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminum billet. The Qutest PCB nestles within a shallow cavity in the solid aluminum chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.

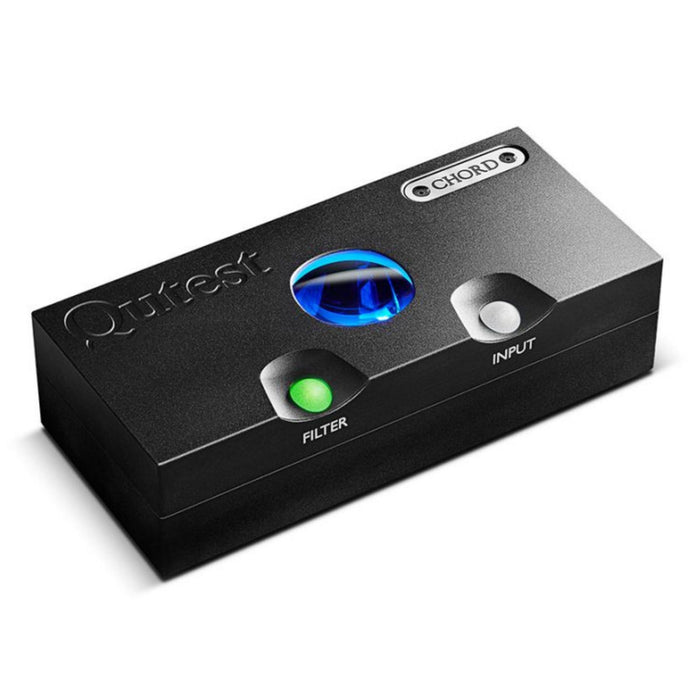

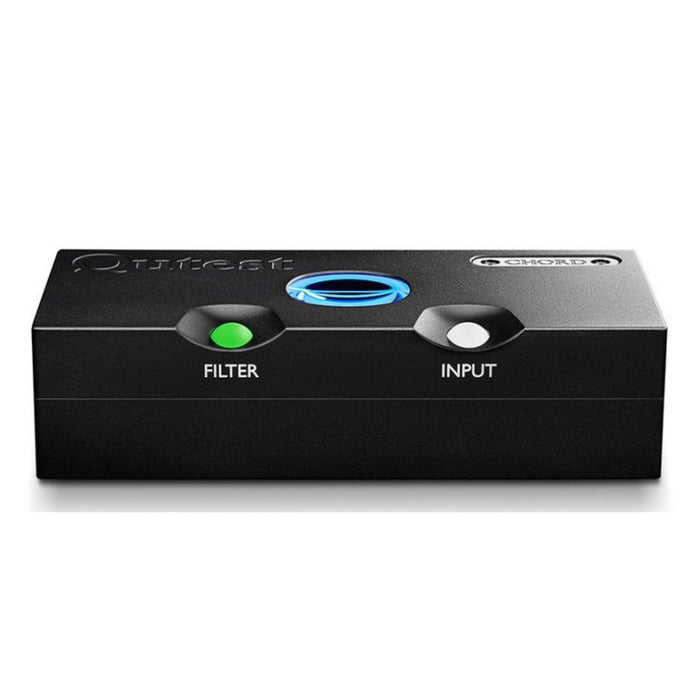

Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.
A further feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.
Specifications
| Chipset | Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA |
| Tap-Length | 4915200.00% |
| Pulse Array | 10 element pulse array design |
| Frequency Response | 20Hz – 20kHz +/- 0.2dB |
| Output Stage | Class A |
| THD | <0.0001% 1kHz 3V RMS 300Ω |
| THD and Noise at 3V RMS | 117dB at 1kHz 300Ω ‘A’ weighted (reference 2.5V) |
| Noise | 2.6 uV ‘A’ weighted; No measurable noise floor modulation |
| Channel Separation | 138dB at 1kHz 300Ω |
| Weight | 770g |
| Dimensions | 4.5cm (H) 16cm (W) 8.8cm (D) |
| Boxed Weight | 1500g |
