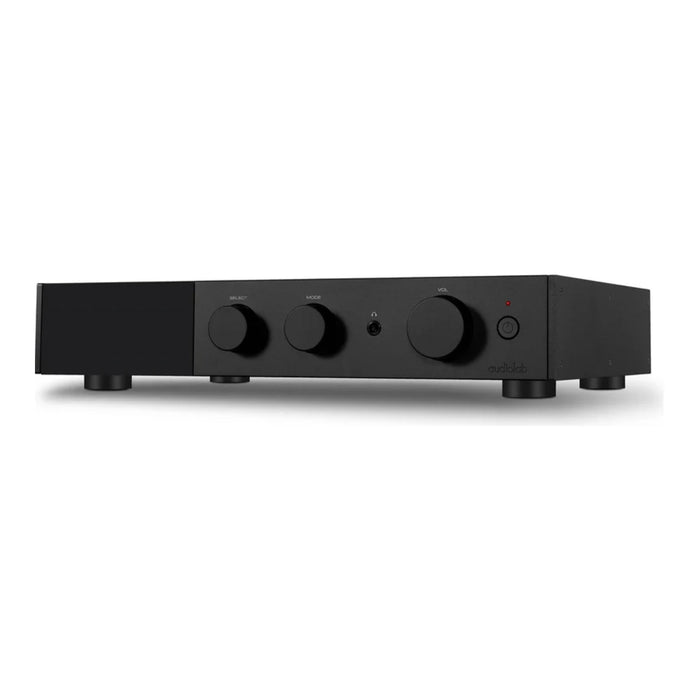

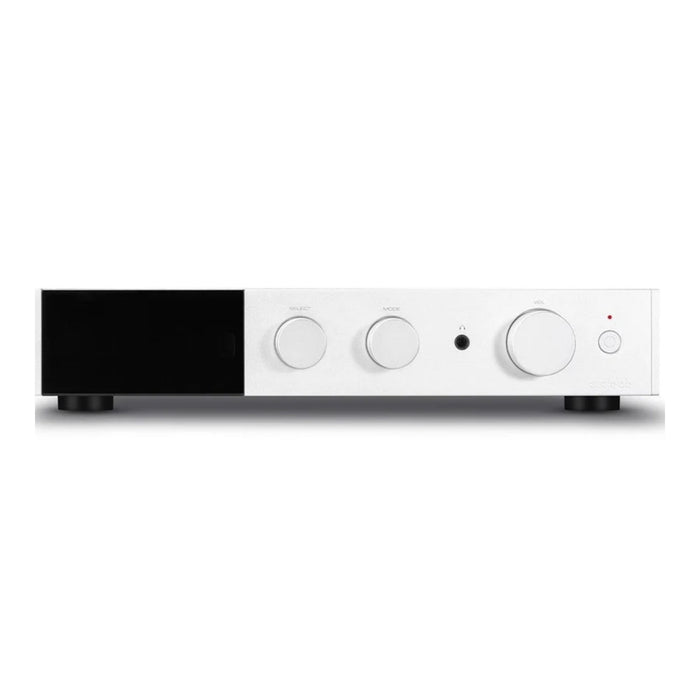

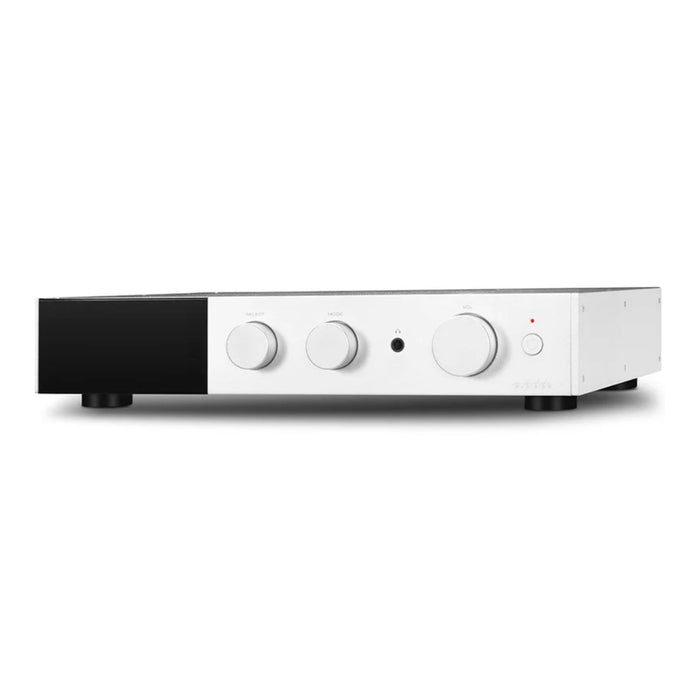

Audiolab 9000A Integrated Amplifier

Key Features

• 100W Per Channel Class AB Amplification — Delivers 2 × 100 watts into 8 ohms and 2 × 160 watts into 4 ohms, with up to 15 amps of output current for strong loudspeaker control.
• ESS ES9038PRO Flagship DAC — Audiolab's high-performance Sabre implementation supports detailed, low-distortion digital playback from optical, coaxial and USB sources.
• PCM 768kHz & DSD512 via USB — The USB-B computer input supports exceptionally high-resolution PCM and native DSD playback.

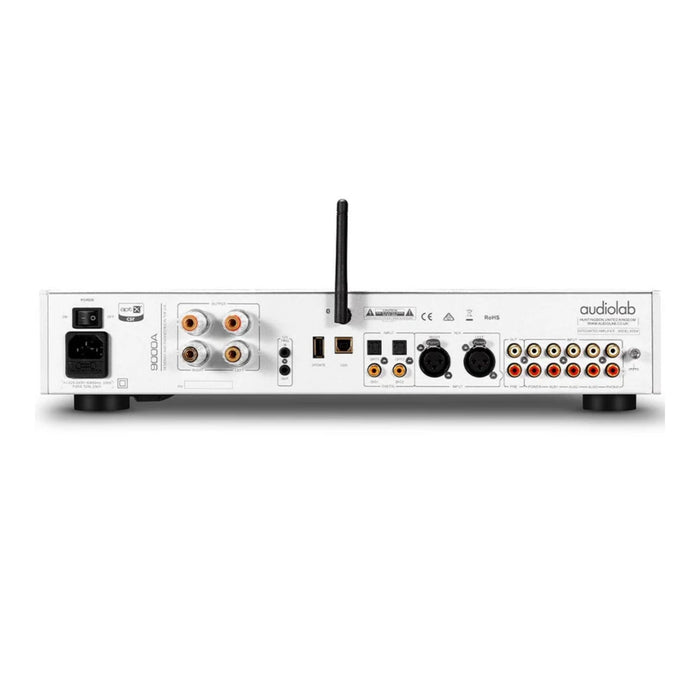

• Balanced, Analog, Digital & Wireless Connectivity — XLR, RCA, phono, USB, coaxial, optical and Bluetooth inputs allow the 9000A to serve as the central component in a wide variety of Hi-Fi systems.
• Built-In MM Phono & Headphone Amplifiers — Dedicated circuits support moving-magnet turntables and headphones without requiring separate external components.

Flagship Audiolab Amplification with Reference Digital and Analog Connectivity

The Audiolab 9000A Integrated Amplifier is the centerpiece of Audiolab's flagship 9000 Series, combining high-current Class AB amplification with sophisticated digital conversion and extensive analog connectivity. Its discrete output stage delivers 100 watts per channel into 8 ohms and 160 watts per channel into 4 ohms, while a custom 320VA toroidal transformer and 60,000µF of total reservoir capacitance provide the current reserve and dynamic stability needed to control demanding loudspeakers.

The 9000A also functions as a complete source hub, with an ESS Sabre ES9038PRO DAC, USB-B computer input, dual coaxial and dual optical digital inputs, Bluetooth 5.1, three RCA line inputs, a balanced XLR input, dedicated MM phono stage and power-amplifier input. A 4.3-inch full-color IPS display, dedicated current-feedback headphone amplifier and selectable Integrated, Pre-Power and Pre modes make it equally suited to streamlined stereo systems and more elaborate separates-based installations.

Technology & Design

Complementary Feedback Class AB Topology — Audiolab's CFB architecture is designed for excellent linearity and thermal stability, keeping idle current largely independent of output-transistor temperature.

320VA Toroidal Power Supply — A custom-specified toroidal transformer feeds four 15,000µF reservoir capacitors for 60,000µF of total stored energy, helping the amplifier maintain control through dynamic musical peaks.

ESS Sabre32 ES9038PRO Conversion — The flagship ESS DAC uses HyperStream II architecture and Time Domain Jitter Eliminator technology, with Audiolab-developed surrounding circuitry optimized for low noise and high dynamic range.

4.3-Inch Full-Color IPS Display — The 800 × 480-pixel screen displays source information, playback data, menus and selectable VU meters while also offering a display-off mode for more discreet listening.

Specifications
